LCAS3/0-14H-X
ObsoletePanduit Corp
CONN TERM RECT TONG 3/0 AWG #1/4
LCAS3/0-14H-X
ObsoletePanduit Corp
CONN TERM RECT TONG 3/0 AWG #1/4
Description
General part information
LCAS3/0-14H-X

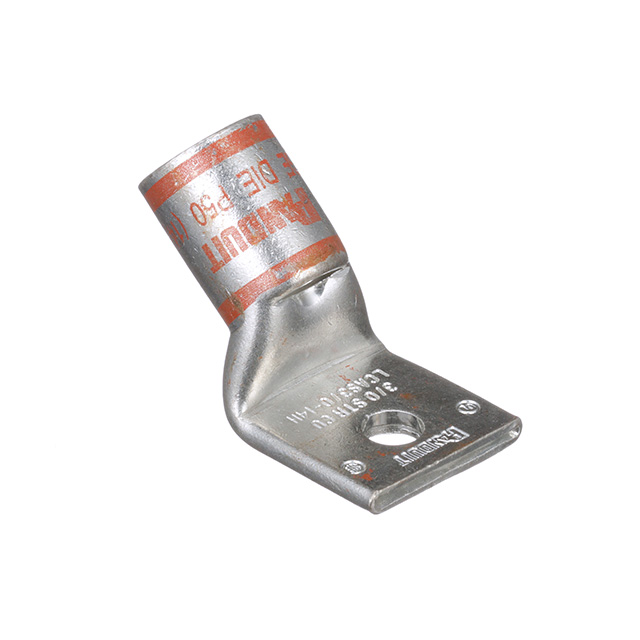

Terminal Connector Rectangular Rectangular Tongue 3/0 AWG 1/4 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAS3/0-14H-X |
|---|---|
| Color | Orange |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.51 in |
| Diameter - Barrel OD | 0.64 in |
| Diameter - Ring ID | 0.27 in |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Stud/Tab Size | 0.25 Stud |
| Tab Thickness | 0.13 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.96 in |
| Wire Gauge | 3/0 AWG |
