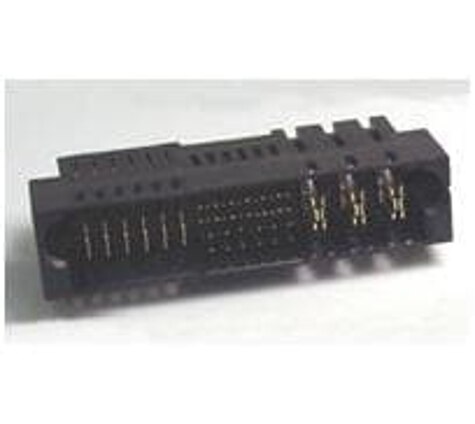

6450830-3
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD MBXL R/A HDR 8LP + 16S + 6LP
6450830-3
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD MBXL R/A HDR 8LP + 16S + 6LP
Description
General part information
6450830-3
PCB Mount Header, Right Angle, Board-to-Board, 30 Position, 2.54 mm / 2.92 mm [.1 in / .115 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6450830-3 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Blades, Male Pins, Header |
| Features | Mating Guide, Board Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Power Contacts (Typical) | 14 |
| Signal Contacts (Typical) | 16 |
| Termination | Solder |
