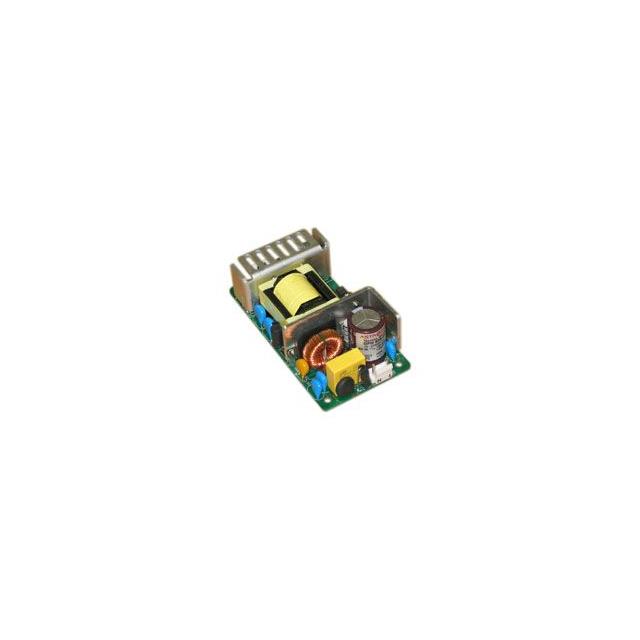

ASL60-48A
ActiveAstrodyne TDI
AC/DC CONVERTER 48V 60W
ASL60-48A
ActiveAstrodyne TDI
AC/DC CONVERTER 48V 60W
Description
General part information
ASL60-48A
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ASL60-48A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CB, CE, cURus |
| Current - Output 1 | 1.25 A |
| Efficiency | 86 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 60 W |
| Size / Dimension Height | 1.24 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
