1550WMBK

Active

Hammond Manufacturing

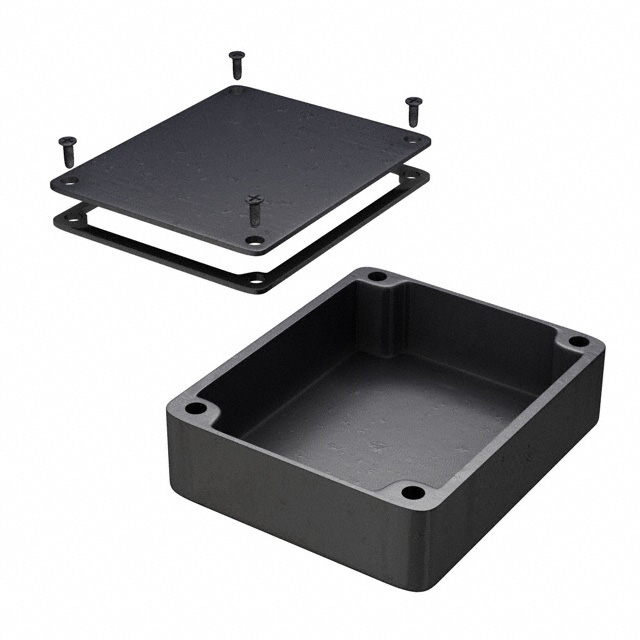

BLACK DIE CAST ALUMINUM WALL MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

1550WMBK

Active

Hammond Manufacturing

BLACK DIE CAST ALUMINUM WALL MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.16
		10	$ 14.37
		100	$ 12.35

Description

General part information

1550 Series

Box Aluminum Black Cover Included 4.740" L x 3.953" W (120.40mm x 100.41mm) X 1.394" (35.41mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1550WMBK	1550 Series

Accessory Type	-	Gasket, Seal, Screws
Area (L x W)	18.7 in²	3.52 - 74.5 in²
Area (L x W)	121 cm²	22.7 - 481 cm²
Area (L x W)	-	101 - 626 cm²
Area (L x W)	-	15.6 - 97 in²
Area (L x W)	-	211 - 254 cm²
Area (L x W)	-	32.7 - 39.3 in²
Area (L x W)	-	15 in²
Color	Black	Unpainted, Black
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Watertight	Watertight, Wall Mount
For Use With/Related Products	-	1550G Series, 1550N Series, 1550K Series, 1550M Series, 1550B Series, 1550 Black Series, 1550C Series, 1550J Series, 1550P Series, 1550E Series, 1550L Series, 1550A Series
Height	-	2.181 in
Height	-	55.4 mm
Height [z]	35.41 mm	25.1 - 105.11 mm
Height [z]	1.394 in	0.988 - 4.138 in
Material	Aluminum	Aluminum, Thick Wall Aluminum
Ratings	IP66	IP54, IP66, NEMA 13, NEMA 4X, NEMA 1, NEMA 4, NEMA 12
Size / Dimension	-	64.21 mm
Size / Dimension	-	150.19 mm
Size / Dimension [x]	4.74 "	1.976 - 10.827 in
Size / Dimension [x]	120.4 mm	5.913 - 275 mm
Size / Dimension [y]	3.953 in	1.378 - 9.85 "
Size / Dimension [y]	100.41 mm	2.528 - 250.19 mm
Thickness	1.8 mm	1.8 - 3.1 mm
Thickness	0.071 in	0.071 - 4.06 in
Thickness	-	0.059 - 0.16 in

1550 Series

BOX ALUM 4.51"L X 2.52"W

...

Part	Design	Area (L x W)	Area (L x W)	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Material	Thickness	Thickness	Accessory Type	For Use With/Related Products	Height [z]	Height [z]	Thickness	Features	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1550D	Cover Included	11.5 in²	74 cm²	IP54	4.508 in	2.52 "	64 mm	114.5 mm	Box	Unpainted	Aluminum	1.8 mm	0.071 in
Hammond Manufacturing 1550GSGASKET														Gasket, Seal	1550G Series
Hammond Manufacturing 1550WB	Cover Included	11.5 in²	74 cm²	IP66	4.508 in	2.52 "	64 mm	114.5 mm	Box	Unpainted	Aluminum		1.5 mm			1.185 in	30.1 mm	0.059 in	Watertight
Hammond Manufacturing 1550GEGASKET														Gasket, Seal	1550G Series
Hammond Manufacturing 1550Z124BK	Cover Included	50.5 in²	326 cm²	IP66, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	8.76 in	5.768 in	146.51 mm	222.5 mm	Box	Black	Thick Wall Aluminum		3 mm			2.165 in	55 mm	0.118 in	Wall Mount, Watertight
Hammond Manufacturing 1550Z108BK	Cover Included			IP66, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	4.937 in	3.165 in	80.39 mm	125.4 mm	Box	Black	Thick Wall Aluminum		3.96 mm			2.315 in	58.8 mm	0.156 in	Wall Mount, Watertight	101 cm²	15.6 in²
Hammond Manufacturing 1550WL	Cover Included			IP66	6.512 in	5.016 in	127.41 mm	165.4 mm	Box	Unpainted	Aluminum		2.01 mm			3.012 "	76.5 mm	0.079 in	Watertight			211 cm²	32.7 in²
Hammond Manufacturing 1550Z102	Cover Included	5.06 in²	32.6 cm²	IP66, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	3.551 in	1.425 in	36.2 mm	90.2 mm	Box	Unpainted	Thick Wall Aluminum	3.1 mm	0.122 in			1.197 "	30.4 mm		Watertight
Hammond Manufacturing 1550Z107BK	Cover Included			IP66, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X	4.937 in	3.165 in	80.39 mm	125.4 mm	Box	Black	Thick Wall Aluminum		4.04 mm			1.606 in	40.79 mm	0.159 "	Wall Mount, Watertight	101 cm²	15.6 in²
Hammond Manufacturing 1550NSGASKET														Gasket, Seal	1550N Series
