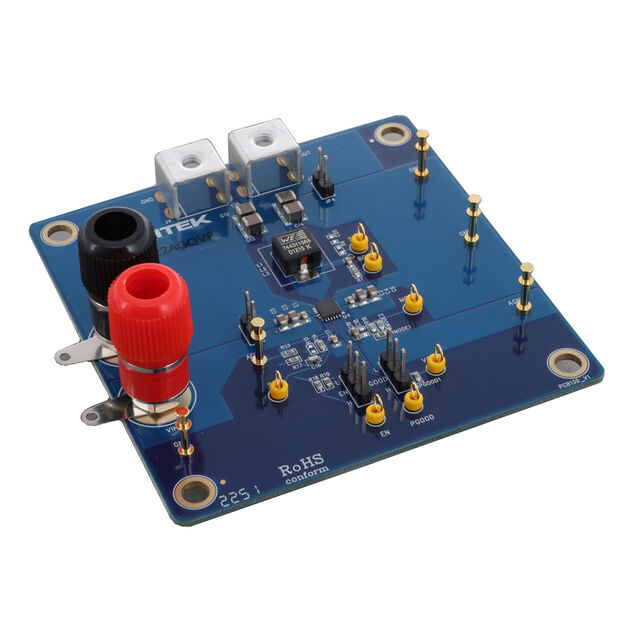

EVB_RTQ2822AGQVF
ActiveRichtek USA Inc.
EVALUATION BOARD FOR RTQ2822AGQV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB_RTQ2822AGQVF |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 12 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | RTQ2822A |
| Voltage - Input [Max] | 17 V |
| Voltage - Input [Min] | 4.5 V |
| Voltage - Output [Max] | 5.5 V |
| Voltage - Output [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 60.00 | |
Description
General part information
EVB_RTQ2822AGQVF
RTQ2822A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
