HM25S-73

Active

Carling Technologies

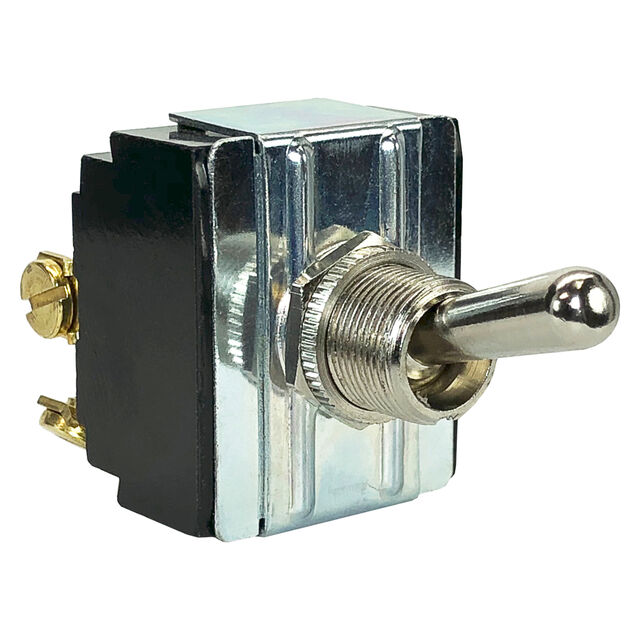

TOGGLE SWITCH, UNSEALED, (ON)-OFF-(ON), 3PDT, NON ILLUMINATED, H SERIES, PANEL MOUNT, 15 A

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCH, UNSEALED, (ON)-OFF-(ON), 3PDT, NON ILLUMINATED, H SERIES, PANEL MOUNT, 15 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HM25S-73	HM25S Series

Actuator Length [x]	17.45 mm	17.45 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	3PDT	3PDT
Current Rating (Amps)	15 A	15 A
Electrical Life	25000 Steps	25000 Steps
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

TOGGLE SWITCH, UNSEALED, (ON)-OFF-(ON), 3PDT, NON ILLUMINATED, H SERIES, PANEL MOUNT, 15 A

Part	Actuator Material	Actuator Type	Bushing Thread	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life
Carling Technologies HM25S-73	Brass, Nickel Plated	Standard Round	15/32-32	15 A	17.45 mm	125 V	3PDT	12.7 mm	Screw Terminal	Mom-Off-Mom	Non-Illuminated	0 °C	85 °C	25000 Steps
Carling Technologies HM25S-78	Brass, Nickel Plated	Standard Round	15/32-32	15 A	17.45 mm	125 V	3PDT	12.7 mm	Screw Terminal	Mom-Off-Mom	Non-Illuminated	0 °C	85 °C	25000 Steps
