6773132321F

Active

DIALIGHT

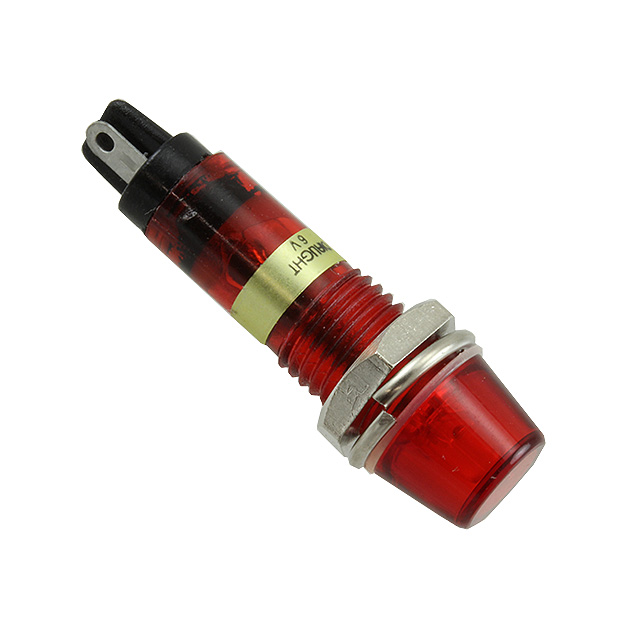

7MM HR/R PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HR/R PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6773132321F	6773132 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	1370 mcd	1370 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	624 nm

7MM HR/R PMI-6VDC W/O-RING

Part	Panel Cutout Shape	Ratings	Voltage	Current	Termination Style	Type	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Millicandela Rating	Ingress Protection	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle
DIALIGHT 6773132321F	Round	DC	6 V	30 mA	Solder Lug	LED	Red	7.11 mm	0.28 "	1370 mcd	IP66, NEMA 4X
DIALIGHT 6773132331F	Round	DC	12 V	30 mA	Solder Lug	LED	Red				IP66, NEMA 4X	624 nm	7.2 mm	0.28 in	25 °
DIALIGHT 6773132341F	Round	DC	24 V	30 mA	Solder Lug	LED	Red				IP66, NEMA 4X	624 nm	7.2 mm	0.28 in	25 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 6V 30mA Solder Lug

Technical documentation and resources

No documents available
