827039-1
ActiveTE Connectivity AMP Connectors

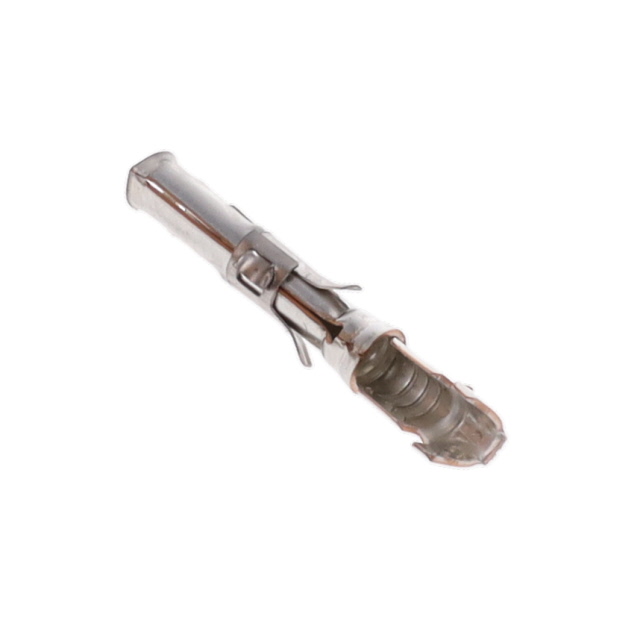

CONN SOCKET 17-20AWG TIN CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
827039-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 17-20AWG TIN CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 827039-1 | 827039 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Phosphor Bronze | Copper, Phosphor Bronze |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | - | Stamped |
| Wire Gauge [Max] | 20 AWG | 1 - 20 mm² |
| Wire Gauge [Min] | 17 AWG | 0.5 - 17 mm² |
827039 Series
CIC.SOCKET ASSY.
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.22 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 5000 | $ 0.11 | ||
Description
General part information
827039 Series
Socket Contact Tin Crimp 17-20 AWG
