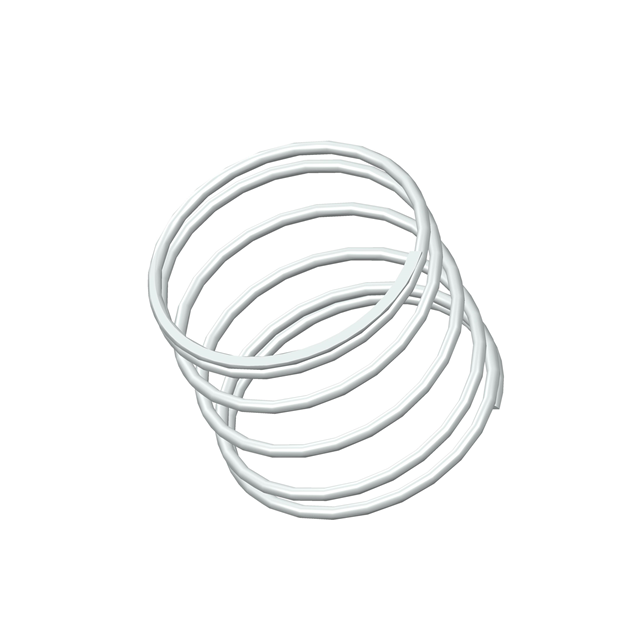

S-931CS
ActiveCentury Spring Corp
COMP O=1.125,L= .97,W= .051
S-931CS
ActiveCentury Spring Corp
COMP O=1.125,L= .97,W= .051
Description
General part information
S-931CS
COMP O=1.125,L= .97,W= .051
Technical Specifications
Parameters and characteristics for this part
| Specification | S-931CS |
|---|---|
| Diameter - Inside | 1.023 in |
| Diameter - Outside | 1.125 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.97 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 1.7 lbs/in |
| Type | Compression |
| Wire Diameter | 0.051 in |
