814-22-062-30-009101

Active

Mill-Max Manufacturing Corp.

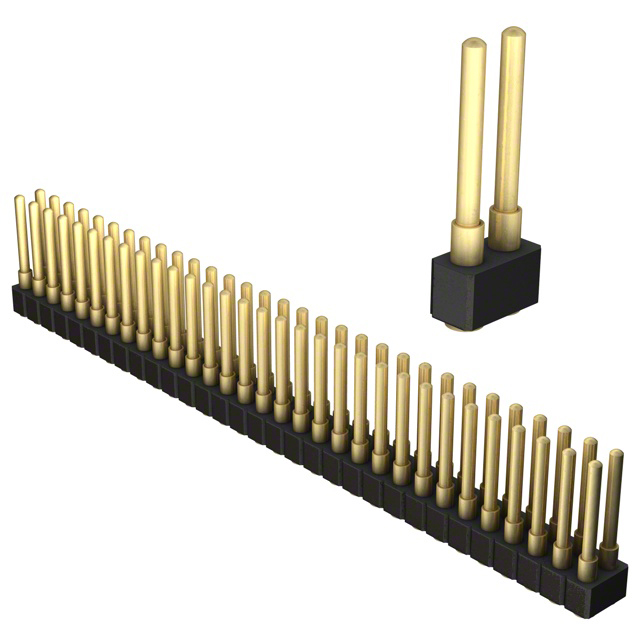

CONN SPRING PISTON 62POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 62POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Material	Contact Finish	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 814-22-072-30-004101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold
Mill-Max Manufacturing Corp. 814-22-056-30-002101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold	56
Mill-Max Manufacturing Corp. 814-22-020-30-002101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold
Mill-Max Manufacturing Corp. 814-22-006-30-002101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold		6
Mill-Max Manufacturing Corp. 814-22-072-30-009101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold
Mill-Max Manufacturing Corp. 814-22-072-30-005101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold
Mill-Max Manufacturing Corp. 814-22-026-30-002101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold	26
Mill-Max Manufacturing Corp. 814-22-024-30-002101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold	24
Mill-Max Manufacturing Corp. 814-22-062-30-009101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold	62
Mill-Max Manufacturing Corp. 814-22-010-30-007101	Piston	0.51 µm	20 µin	2	Surface Mount	0.1 in	2.54 mm	2.54 mm	0.1 in	Copper Alloy	Gold	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 Position Spring Piston Connector Surface Mount
