1891250
ActivePhoenix Contact
TERM BLOCK 8POS 45DEG 5.08MM PCB
1891250
ActivePhoenix Contact
TERM BLOCK 8POS 45DEG 5.08MM PCB
Description
General part information
1891250

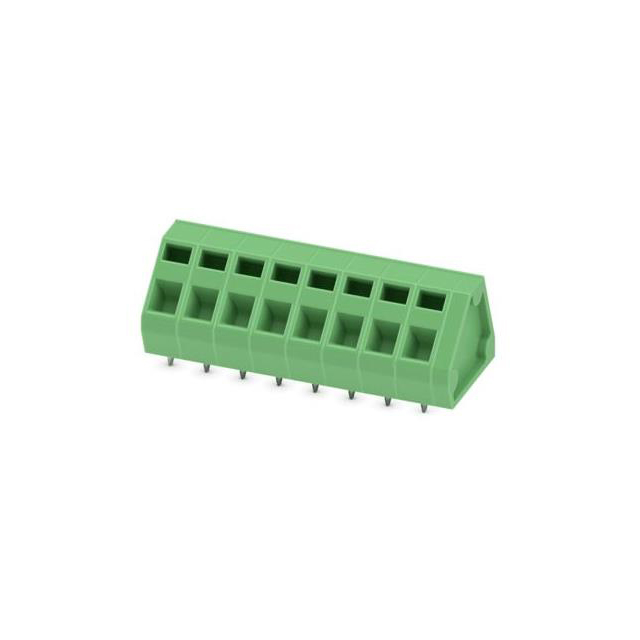

8 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1891250 |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin Plated |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Pitch | 5.08 mm |
| Positions Per Level | 8 |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
