Description
General part information
C0805C152G5GAC3123

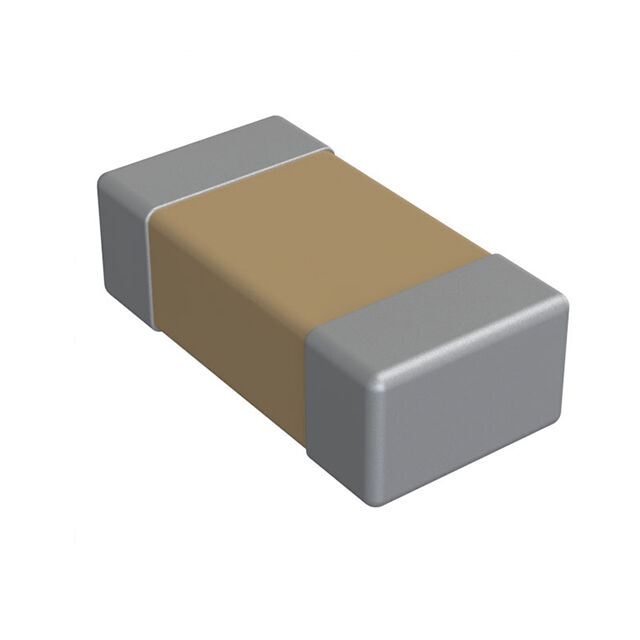

1500 pF ±2% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C0805C152G5GAC3123 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 pF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.039 in |
| Tolerance | 2 % |
| Voltage - Rated | 50 V |
