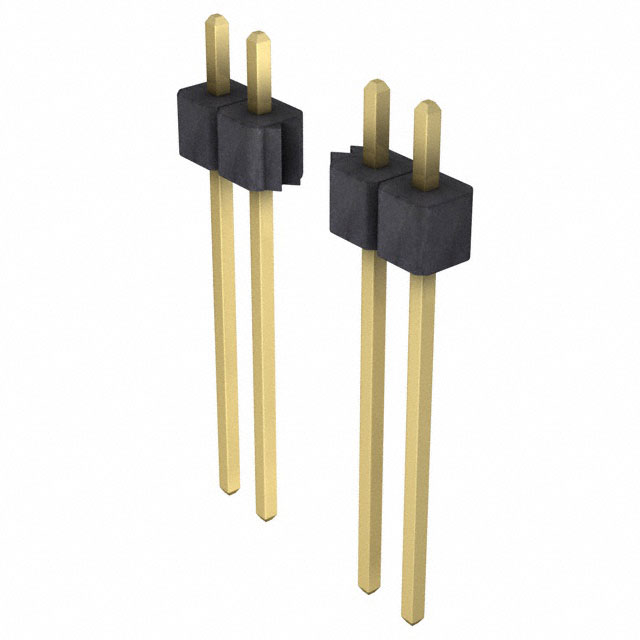

PGC20SZDN

Active

Sullins Connector Solutions

CONN HEADER VERT 20POS 2.54MM

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HEADER VERT 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	PGC20SZDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	5 µin
Contact Finish Thickness - Post	0.127 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.61 in
Contact Length - Post	15.49 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Number of Rows	Current Rating (Amps)	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Contact Type	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish - Post	Contact Material	Contact Shape	Connector Type	Style	Number of Positions	Insulation Material
Sullins Connector Solutions PGC20SZDN	0.83 in	21.08 mm	Gold	1	3 A	Solder	Black	10 çin	0.25 çm	5 µin	0.127 µm	Through Hole	3.05 mm	0.12 in	0.1 in	2.54 mm	Push-Pull	All	0.1 in	2.54 mm	UL94 V-0	Male Pin	0.61 in	15.49 mm	Unshrouded	Gold	Copper Alloy	Square	Header	Board to Board Cable	20	Polyester Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.09

General part information

Connector Header Through Hole 20 position 0.100" (2.54mm)
