Description
General part information

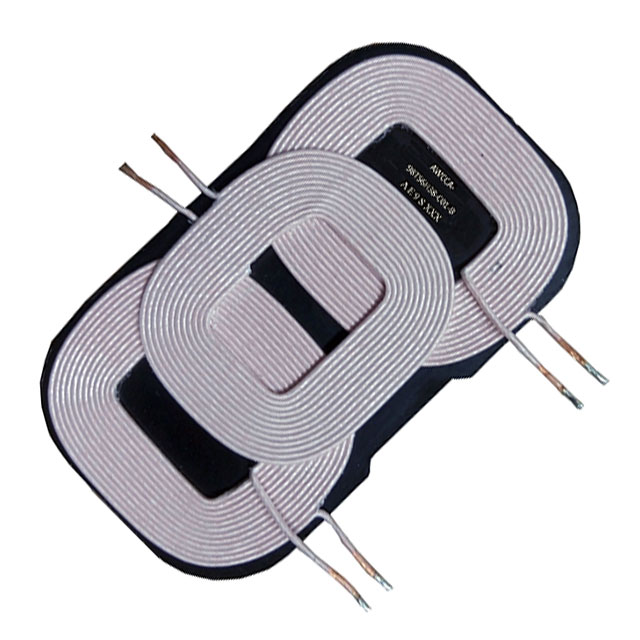

AWCCA-98T56H38-C01-B
3 Coil, 1 Layer 12.0µH, 11.5µH, 12.0µH Wireless Charging Coil Transmitter 56mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | AWCCA-98T56H38-C01-B |
|---|---|
| DC Resistance (DCR) | 56 mOhm |
| Function | Transmitter |
| Inductance (Maximum) | 12 µH |
| Inductance (Minimum) | 11.5 µH |
| Inductance (Typical) | 12 µH |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Q | 110, 120 |
| Size / Dimension Height | 0.15 in |
| Size / Dimension Length | 3.86 in |
| Size / Dimension Width | 2.2 in |
| Tolerance | 10 % |
| Type | 3 Coil, 1 Layer |
