MS3116E12-10P
ActiveAmphenol Industrial Operations

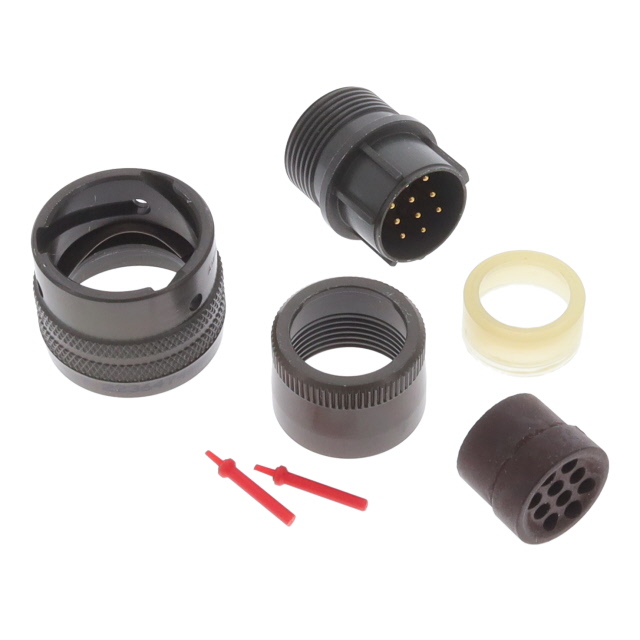

CONN PLUG MALE 10P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116E12-10P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 10P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116E12-10P | MS3116E12 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 12-3 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MS3116E12 Series
CONN PLUG MALE 3P GOLD SLDR CUP
| Part | Fastening Type | Backshell Material, Plating | Primary Material | Color | Mounting Type | Contact Finish - Mating | Orientation | Shielding | Grade | Applications | Shell Material | Shell Size - Insert | Contact Material | Connector Type | Ingress Protection | Features | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Insert Material | Qualification | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116E12-3P | Bayonet Lock | Aluminum, Olive Drab Chromate over Cadmium | Metal | Olive Drab | Free Hanging (In-Line) | Gold | N | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | 12-3 | Copper Alloy | Male Pins, Plug | Environment Resistant | Backshell, Coupling Nut | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Neoprene | MIL-DTL-26482 Series I | |
Amphenol Industrial Operations MS3116E12-3S | Bayonet Lock | Aluminum, Olive Drab Chromate over Cadmium | Metal | Olive Drab | Free Hanging (In-Line) | Gold | N | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | 12-3 | Copper Alloy | Female Sockets, Plug | Environment Resistant | Backshell, Coupling Nut | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Neoprene | MIL-DTL-26482 Series I | |
Amphenol Industrial Operations MS3116E12-10P | Bayonet Lock | Aluminum, Olive Drab Chromate over Cadmium | Metal | Olive Drab | Free Hanging (In-Line) | Gold | N | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Copper Alloy | Male Pins, Plug | Environment Resistant | Backshell, Coupling Nut | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Neoprene | MIL-DTL-26482 Series I | 10 | |
Amphenol Industrial Operations MS3116E12-10S | Bayonet Lock | Aluminum, Olive Drab Chromate over Cadmium | Metal | Olive Drab | Free Hanging (In-Line) | Gold | N | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Copper Alloy | Female Sockets, Plug | Environment Resistant | Backshell, Coupling Nut | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Neoprene | MIL-DTL-26482 Series I | 10 | |
Amphenol Industrial Operations MS3116E12-3SY | Bayonet Lock | Aluminum, Olive Drab Chromate over Cadmium | Metal | Olive Drab | Free Hanging (In-Line) | Gold | Y | Unshielded | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | 12-3 | Copper Alloy | Female Sockets, Plug | Environment Resistant | Backshell, Coupling Nut | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Neoprene | MIL-DTL-26482 Series I |
Description
General part information
MS3116E12 Series
10 Position Circular Connector Plug, Male Pins Solder Cup
