Description
General part information

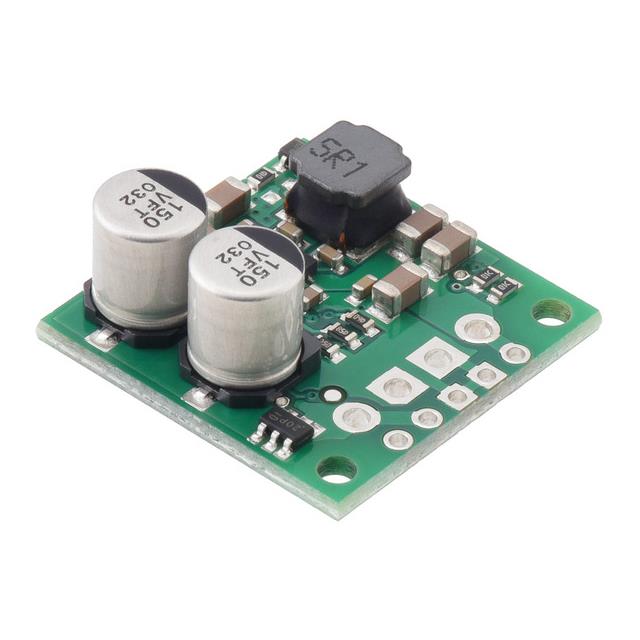

4984
Non-Isolated PoL Module DC DC Converter 1 Output 12V 2.5A 2.8V - 22V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 4984 |
|---|---|
| Control Features | Active Floating, Enable |
| Current - Output (Max) | 2.5 A |
| Efficiency | 95 % |
| Features | RVP, OCP, OVP, OTP, UVLO |
| Number of Outputs | 1 |
| Package / Case | 5-SIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.38 in |
| Size / Dimension Length | 0.9 in |
| Size / Dimension Width | 0.9 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 22 V |
| Voltage - Input (Min) | 2.8 V |
| Voltage - Output 1 | 12 V |
