TL2-NNS4WT-O1G1
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
TL2-NNS4WT-O1G1
ActiveShenzhen Lakeview Electronics Co., Ltd
SWITCH TACTILE SPST-NO 0.05A 12V
Description
General part information
TL2-NNS4WT-O1G1

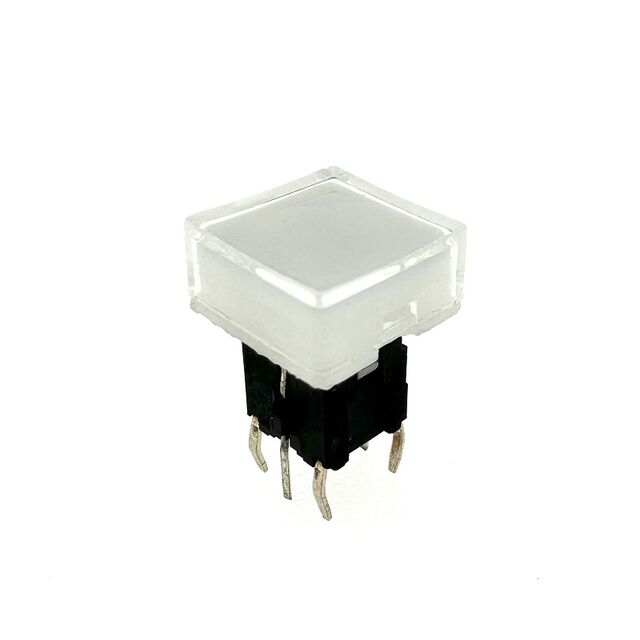

Tactile Switch SPST-NO Top Actuated Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TL2-NNS4WT-O1G1 |
|---|---|
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Color | Green, Orange |
| Contact Rating (Current) | 0.05 A |
| Illumination | Illuminated |
| Illumination Type | LED |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 180 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Length | 9.8 mm |
| Outline Width | 9.8 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | PC Pin |
