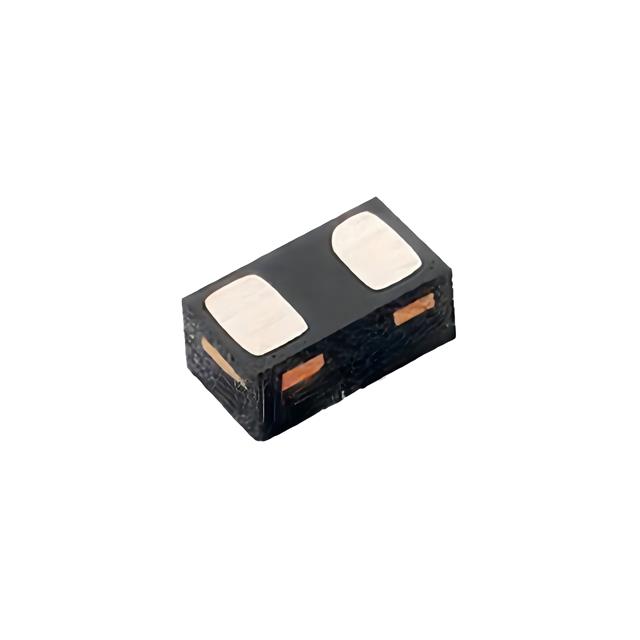

PESD5V0V1BL
ActiveUMW
SOD-882 ESD PROTECTION DEVICES R
Deep-Dive with AI
Search across all available documentation for this part.
PESD5V0V1BL
ActiveUMW
SOD-882 ESD PROTECTION DEVICES R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PESD5V0V1BL |
|---|---|
| Applications | Telecom, Ethernet |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 11 pF |
| Current - Peak Pulse (10/1000µs) | 4.8 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-882 |
| Power - Peak Pulse | 45 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-882 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 5.8 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 12.5 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.16 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| 5000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.16 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| 5000 | $ 0.04 | |||
| Tape & Reel (TR) | 10000 | $ 0.03 | ||
| 30000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 100000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
Description
General part information
PESD5V0V1BL
12.5V Clamp 4.8A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Documents
Technical documentation and resources
No documents available
