Description
General part information

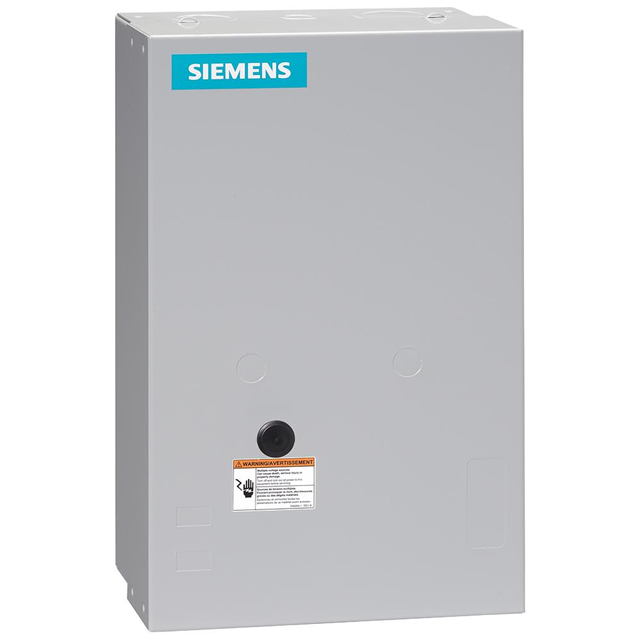

CLM1E02120
CONTACTOR LTG M-HELD,100A,2NO,N1
Technical Specifications
Parameters and characteristics for this part
| Specification | CLM1E02120 |
|---|---|
| Coil Power | 900 VA |
| Coil Voltage | 120 V |
| Contact Form | DPST-NO |
| Contact Rating (Current) | 100 A |
| Features | Auxiliary Contacts |
| Form A Count | 2 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Switching Voltage AC (Max) | 600 VAC |
| Termination Style | Screw Terminal |
