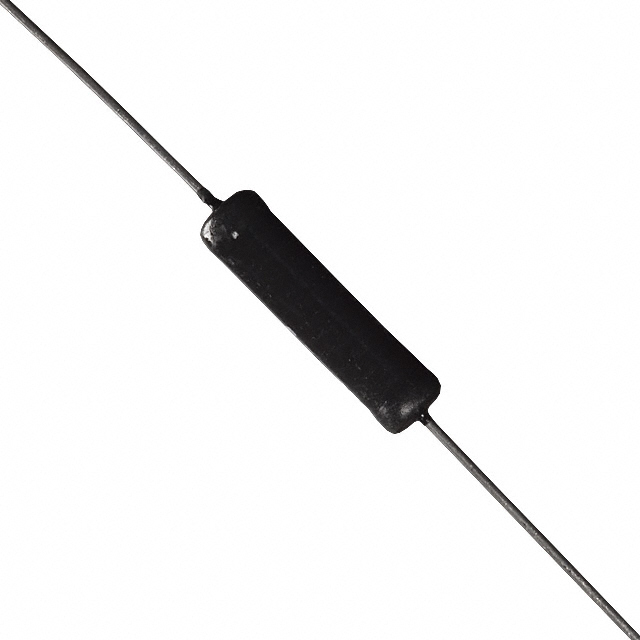

MRA-123R500FE12
ActiveVishay Dale
RES 3.5 OHM 1% AXIAL
MRA-123R500FE12
ActiveVishay Dale
RES 3.5 OHM 1% AXIAL
Description
General part information
MRA-123R500FE12
3.5 Ohms ±1% 10W Through Hole Resistor Axial Moisture Resistant, Non-Inductive, Non-Magnetic Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | MRA-123R500FE12 |
|---|---|
| Composition | Wirewound |
| Features | Non-Inductive, Moisture Resistant, Non-Magnetic |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 250 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 10 W |
| Resistance | 3.5 Ohms |
| Size / Dimension Diameter | 0.312 in |
| Size / Dimension Length | 1.188 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
