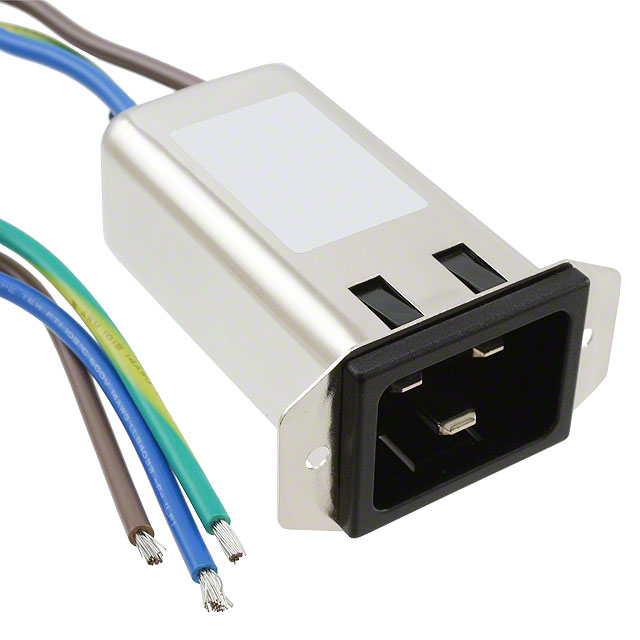

20GEEW3E

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PNL WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20GEEW3E	20GEEW Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C20	IEC 320-C20
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	20 A	20 A
Features	-	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	34.5 mm	34.5 mm
Panel Cutout Dimensions [y]	26.5 mm	26.5 mm
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C20 PNL WIRE

Part	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Mounting Type	Filter Type	Connector Style	Connector Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Features
Delta Electronics 20GEEW3E	Wire Leads	115 VAC	250 VAC	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	IEC 320-C20	Male Blades, Receptacle		20 A	34.5 mm	26.5 mm	CSA, UL, VDE
Delta Electronics 20GEEW3E-R	Wire Leads	115 VAC	250 VAC	Flange, Panel Mount	Filtered (EMI, RFI) - Commercial	IEC 320-C20	Male Blades, Receptacle		20 A	34.5 mm	26.5 mm	CSA, UL, VDE	Bleed Resistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange

Technical documentation and resources
