159234-5002

Active

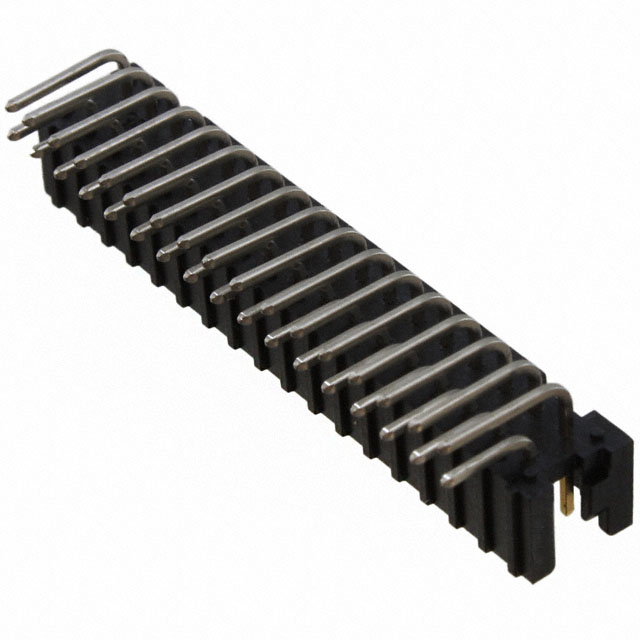

CONN HEADER R/A 34POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 34POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	159234-5002

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3.61 mm
Contact Length - Mating	0.142 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Detent Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.241 in
Insulation Height	6.13 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

CONN HEADER R/A 34POS 2MM

Part	Mounting Type	Shrouding	Number of Positions Loaded	Current Rating (Amps)	Termination	Voltage Rating	Contact Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Material Flammability Rating	Fastening Type	Style	Contact Finish - Mating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating
3M 159234-5002	Through Hole, Right Angle	Shrouded - 4 Wall	All	1.25 A	Solder	150 VDC	Copper Alloy	Tin	Header	200 µin	5.08 µm	Keying Slot	UL94 V-0	Detent Lock	Board to Cable/Wire	Gold	2	105 ░C	-55 °C	Square	0.241 in	6.13 mm	0.079 in	2 mm	15 µin	0.38 µm	Black	34	2.84 mm	0.112 in	3.61 mm	0.142 in	Male Pin	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
