GRF4.0417.013.C

Active

SCHURTER Inc.

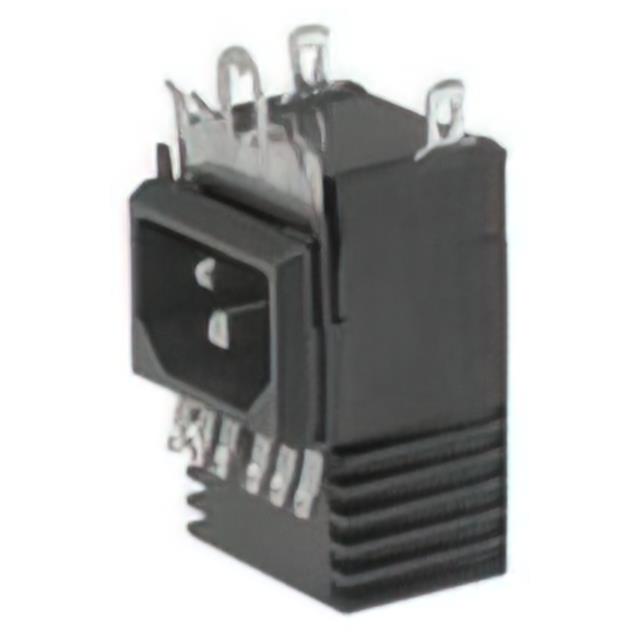

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GRF4.0417.013.C	GRF4.0417 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	10 A	10 A
Features	Shielded	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm	20.8 mm
Panel Thickness	-	1 mm
Panel Thickness	-	0.039 in
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Features	Accomodates a Fuse	Mounting Type	Termination	Termination	Current Rating - Appliance Inlet	Ingress Protection	Voltage Rating - Appliance Inlet	Filter Type	Material Flammability Rating	Connector Type	Connector Style	Current Rating - Filter	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [custom]	Panel Thickness [custom]	Panel Thickness	Panel Thickness
SCHURTER Inc. GRF4.0417.013.C	Shielded		Panel Mount, Snap-In	0.189 ", 4.8 mm	Quick Connect	10 A	IP40	250 VAC	Filtered (EMI, RFI) - Commercial	UL94 V-0	Male Blades, Receptacle	IEC 320-C14	10 A	CSA, UL, VDE	30.5 mm	20.8 mm	0.059 in	1.5 mm
SCHURTER Inc. GRF4.0417.011.C	Shielded		Panel Mount, Snap-In	0.189 ", 4.8 mm	Quick Connect	10 A	IP40	250 VAC	Filtered (EMI, RFI) - Commercial	UL94 V-0	Male Blades, Receptacle	IEC 320-C14	10 A	CSA, UL, VDE	30.5 mm	20.8 mm			1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
