Description
General part information

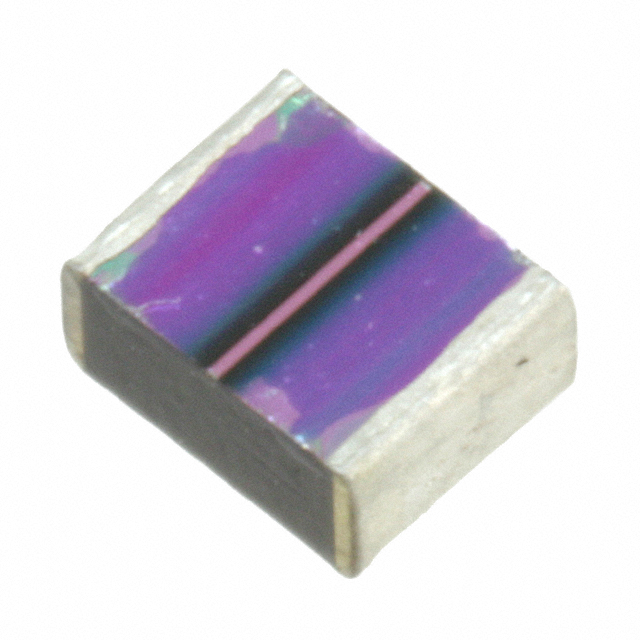

16ST335MB33225
3.3 µF Film Capacitor 16V Acrylic, Metallized 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 16ST335MB33225 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 3.3 µF |
| Dielectric Material | Metallized, Acrylic |
| Height - Seated (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Termination | Solder Pads |
| Tolerance | 20 % |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
