A7FXB-3710M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFP37B/AE37M/X
Deep-Dive with AI
Search across all available documentation for this part.
A7FXB-3710M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFP37B/AE37M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7FXB-3710M | A7FXB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB9, DB25, DB15, DB37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.70 | |
| 10 | $ 15.50 | |||
| 25 | $ 14.38 | |||
| 50 | $ 13.60 | |||
| 100 | $ 12.85 | |||
| 250 | $ 11.94 | |||
| 500 | $ 11.29 | |||
A7FXB Series
CABLE D-SUB - AFP09B/AE09G/X
| Part | Contact Finish | Number of Positions | 1st Connector | Contact Finish Thickness | Contact Finish Thickness | 2nd Connector | Type | Length | Length | Shielding | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7FXB-0910G | Gold | 9 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB9 | 10 ft | 3.05 m | Unshielded | |
TE Connectivity AMP Connectors A7FXB-2506M | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB25 | 6 ft | 1.83 m | Unshielded | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7FXB-0910M | Gold | 9 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB9 | 10 ft | 3.05 m | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FXB-2506G | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB25 | 6 ft | 1.83 m | Unshielded | ||
TE Connectivity AMP Connectors A7FXB-2510G | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB25 | 10 ft | 3.05 m | Unshielded | ||
TE Connectivity AMP Connectors A7FXB-2510M | Gold | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB25 | 10 ft | 3.05 m | Unshielded | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7FXB-1506M | Gold | 15 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB15 | 6 ft | 1.83 m | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FXB-3710M | Gold | 37 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB37 | 10 ft | 3.05 m | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FXB-0906G | Gold | 9 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB9 | 6 ft | 1.83 m | Unshielded | |
TE Connectivity AMP Connectors A7FXB-3706G | Gold | 37 | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | Individual Wire Leads | DB37 | 6 ft | 1.83 m | Unshielded |
Description
General part information
A7FXB Series

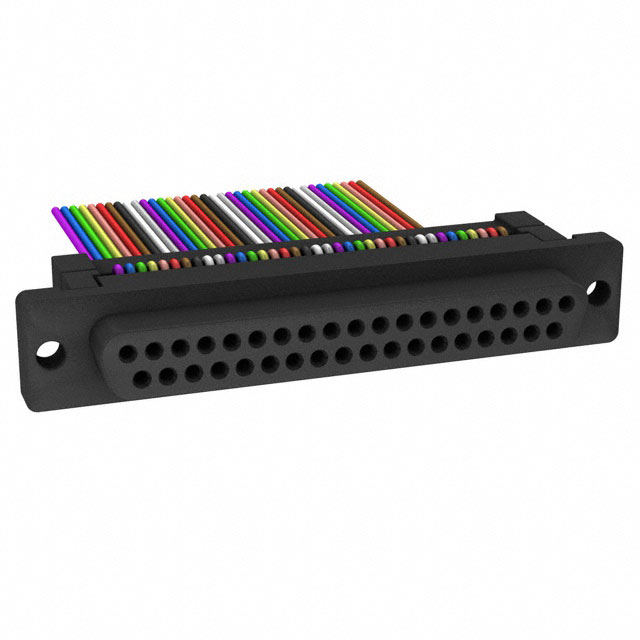

D-Sub Cable Assembly DB37 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
