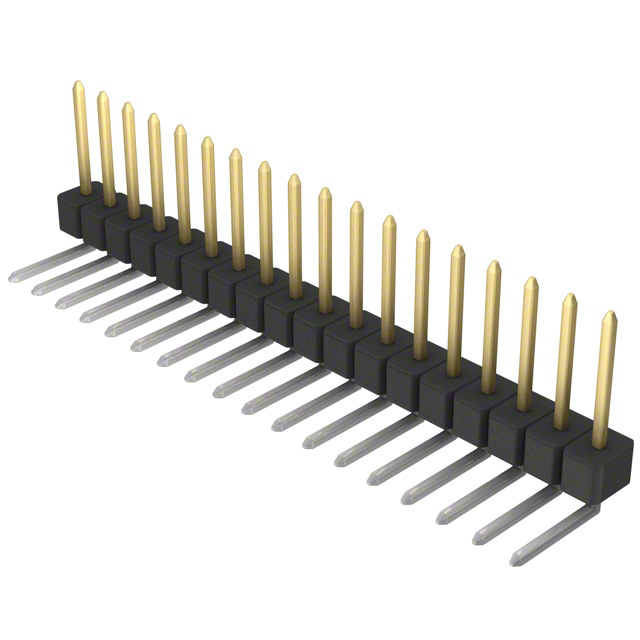

PBC18SGBN

Active

Sullins Connector Solutions

CONN HEADER R/A 18POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC18SGBN

Active

Sullins Connector Solutions

CONN HEADER R/A 18POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC18SGBN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	5.08 mm
Contact Length - Post [x]	0.2 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC18 Series

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions	Fastening Type	Contact Shape	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Connector Type	Shrouding	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PBC18SGBN	0.318 "	8.08 mm	3.56 mm	0.14 in	3 A	18	Push-Pull	Square	Through Hole Right Angle	5.08 mm	0.2 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	1	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder
Sullins Connector Solutions PBC18DFAN	0.318 "	8.08 mm	2.54 mm	0.1 in	3 A	36	Push-Pull	Square	Through Hole	3.05 mm	0.12 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	2	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder	2.54 mm	0.1 in	0.538 "	13.67 mm
Sullins Connector Solutions PBC18DAAN	0.23 in		2.54 mm	0.1 in	3 A	36	Push-Pull	Square	Through Hole	3.05 mm	0.12 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	2	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder	2.54 mm	0.1 in	0.45 "	11.43 mm	5.84 mm
Sullins Connector Solutions PBC18SBDN	0.23 in		3.56 mm	0.14 in	3 A	18	Push-Pull	Square	Through Hole Right Angle	10.16 mm	0.4 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	1	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder					5.84 mm
Sullins Connector Solutions PBC18DABN	0.23 in		2.54 mm	0.1 in	3 A	36	Push-Pull	Square	Through Hole			2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	2	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder	2.54 mm	0.1 in	0.56 in	14.22 mm	5.84 mm	0.23 in	5.84 mm
Sullins Connector Solutions PBC18SAEN	0.23 in		2.54 mm	0.1 in	3 A	18	Push-Pull	Square	Through Hole			2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	1	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder			0.85 in	21.59 mm	5.84 mm	0.52 "	13.21 mm
Sullins Connector Solutions PBC18SFDN	0.318 "	8.08 mm	2.54 mm	0.1 in	3 A	18	Push-Pull	Square	Through Hole	10.67 mm	0.42 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	1	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder			0.838 in	21.29 mm
Sullins Connector Solutions PBC18SFCN	0.318 "	8.08 mm	2.54 mm	0.1 in	3 A	18	Push-Pull	Square	Through Hole	8.13 mm	0.32 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	1	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder			0.738 "	18.75 mm
Sullins Connector Solutions PBC18DACN	0.23 in		2.54 mm	0.1 in	3 A	36	Push-Pull	Square	Through Hole	8.13 mm	0.32 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	2	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder	2.54 mm	0.1 in		0.65 in	5.84 mm			16.51 mm
Sullins Connector Solutions PBC18DAEN	0.23 in		2.54 mm	0.1 in	3 A	36	Push-Pull	Square	Through Hole			2.54 µm	100 µin	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Polybutylene Terephthalate (PBT)	Breakaway Header	Unshrouded	Board to Board Cable	125 °C	-65 ░C	Gold	Tin	2	0.1 in	2.54 mm	Black	All	UL94 V-0	Solder	2.54 mm	0.1 in	0.85 in	21.59 mm	5.84 mm	0.52 "	13.21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.31
		10	$ 2.53
		100	$ 1.96
		500	$ 1.65
		1000	$ 1.54
		5000	$ 1.52

Description

General part information

PBC18 Series

Connector Header Through Hole, Right Angle 18 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
