928017-1

Active

TE Connectivity AMP Connectors

CONN CARDEDGE HSG 6POS .197

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN CARDEDGE HSG 6POS .197

Technical Specifications

Parameters and characteristics for this part

Specification	928017-1

Card Type	Non Specified - Dual Edge
Features	Latch Lock
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Pitch [x]	5 mm
Pitch [x]	0.197 in

CONN CARDEDGE HSG 6POS .197

Part	Card Type	Number of Positions	Pitch [x]	Pitch [x]	Features	Mounting Type	Note	Material Flammability Rating
TE Connectivity AMP Connectors 928017-1	Non Specified - Dual Edge	6	5 mm	0.197 in	Latch Lock	Free Hanging (In-Line)	Contacts Not Included	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18000	$ 0.43

General part information

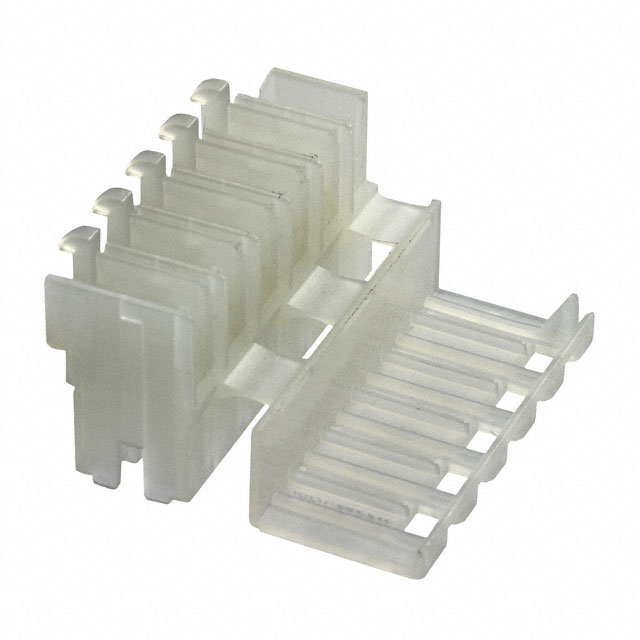

6 Position Card Edge Connector Housing 0.197" (5.00mm) Free Hanging (In-Line)
