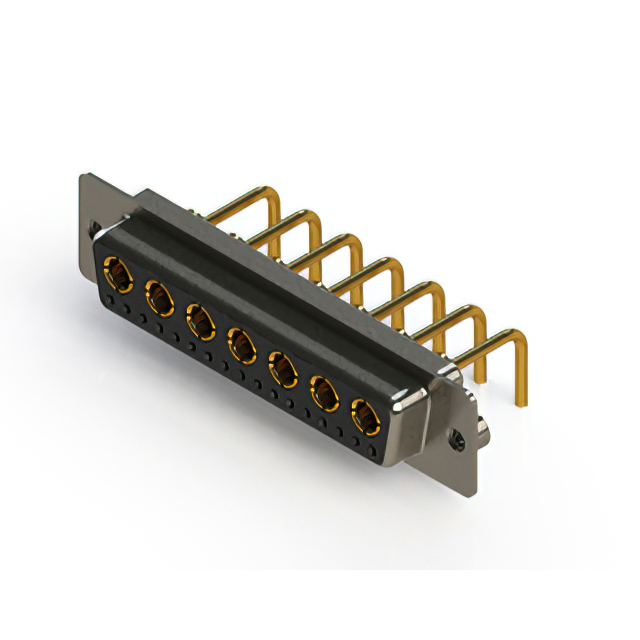

630-24W7250-1N2

Active

EDAC Inc.

CONN D-SUB RCPT 24POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-24W7250-1N2

Active

EDAC Inc.

CONN D-SUB RCPT 24POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-24W7250-1N2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D) - 24W7
Termination	Solder
Voltage Rating	125 VDC

630-24W Series

...

Part	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish	Contact Material	Contact Type	Termination	Color	Dielectric Material	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Shell Size, Connector Layout	Mounting Type	Number of Rows	Current Rating (Amps)	Number of Positions	Features	Contact Finish Thickness	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 630-24W7640-5T2	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold	Copper Alloy	Coax Signal	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets	17	7	UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2
EDAC Inc. 630-24W7250-4T1	Combo D-Sub			Housing/Shell (Unthreaded)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 40 A	24	Shielded	Flash
EDAC Inc. 630-24W7250-2T5	Combo D-Sub			4-40	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 20 A	24	Board Lock Mounting Brackets	Flash
EDAC Inc. 630-24W7650-2T4	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 20 A	24	Mounting Brackets
EDAC Inc. 630-24W7250-1NB	Combo D-Sub			Housing/Shell (M3)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2		24	Board Lock Mounting Brackets	Flash	Nickel Plated Steel	10A 5A
EDAC Inc. 630-24W7240-2TE	Combo D-Sub			M3	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 20 A	24	Mounting Brackets	Flash
EDAC Inc. 630-24W7640-4T3	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (4-40)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 40 A	24	Board Lock Mounting Brackets
EDAC Inc. 630-24W7640-4T1	Combo D-Sub	0.76 Ám	30 Áin	Housing/Shell (Unthreaded)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2	5 A 40 A	24	Shielded
EDAC Inc. 630-24W7240-7T1	Combo D-Sub			Housing/Shell (Unthreaded)	Gold	Copper Alloy	Coax Signal	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets	17	7	UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2			Shielded	Flash
EDAC Inc. 630-24W7250-1N2	Combo D-Sub			Housing/Shell (4-40)	Gold	Copper Alloy	Signal and Power	Solder	Black	Polyester Thermoplastic	9.4 mm	0.37 in	-55 °C	125 °C	125 VDC	Receptacle Female Sockets			UL94 V-0	5 (DD D) - 24W7	Through Hole Right Angle	2		24		Flash	Nickel Plated Steel	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.56

Description

General part information

630-24W Series

24 (17 + 7 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
