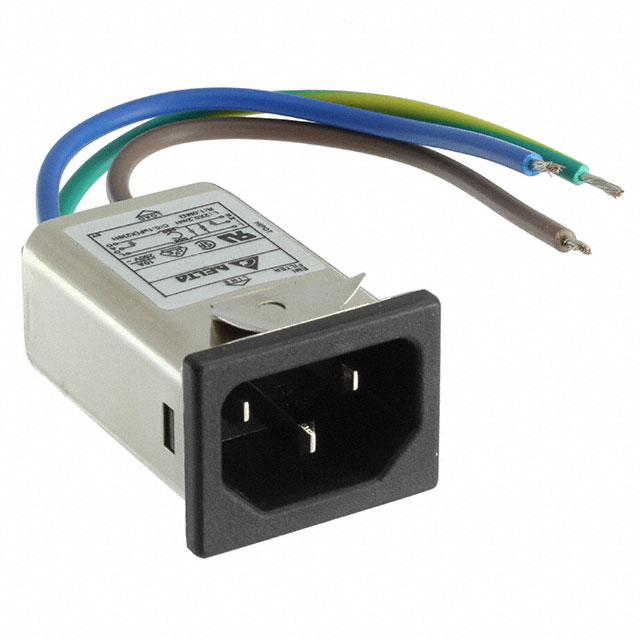

15GENW3EM-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15GENW3EM-R	15GENW Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A	15 A
Current Rating - Filter	15 A	15 A
Features	Bleed Resistor	Bleed Resistor, Mounting Clip
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	-	29.5 mm
Panel Cutout Dimensions	-	21.5 mm
Panel Thickness [Max]	0.063 in	0.063 in
Panel Thickness [Max]	1.6 mm	1.6 mm
Panel Thickness [Min]	0.81 mm	0.81 mm
Panel Thickness [Min]	0.032 in	0.032 in
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Approval Agency	Termination	Mounting Type	Connector Type	Accomodates a Fuse	Filter Type	Features	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter	Current Rating - Appliance Inlet	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Delta Electronics 15GENW3EM-R	CSA, UL, VDE	Wire Leads	Panel Mount, Snap-In	Male Blades, Receptacle		Filtered (EMI, RFI) - Commercial, Medical	Bleed Resistor	115 VAC	250 VAC	15 A	15 A	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14
Delta Electronics 15GENW3EM-R(H)	CSA, UL, VDE	Wire Leads	Panel Mount, Snap-In	Male Blades, Receptacle		Filtered (EMI, RFI) - Commercial, Medical	Bleed Resistor, Mounting Clip	115 VAC	250 VAC	15 A	15 A	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	29.5 mm	21.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
