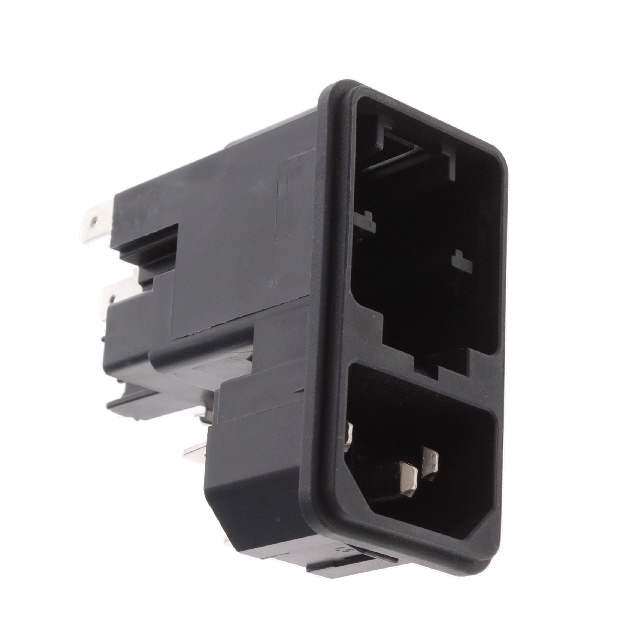

KE16.5100.105

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KE16.5100.105	KE16.5100 Series

Accomodates a Fuse	True	True
Approval Agency	UL, ENEC, CSA	cURus, ENEC, UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm	52.5 mm
Panel Thickness	-	2.5 mm
Panel Thickness	-	0.098 in
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Voltage Rating - Appliance Inlet	Mounting Type	Current Rating - Appliance Inlet	Material Flammability Rating	Approval Agency	Ingress Protection	Filter Type	Connector Style	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Fuse Holder, Drawer	Connector Type	Panel Thickness [x]	Panel Thickness [x]	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. KE16.5100.151	Voltage Selector	250 VAC	Flange, Panel Mount	10 A	UL94 V-0	cURus, ENEC	IP40	Unfiltered - Commercial	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	27.5 mm	52.5 mm	Drawer Sold Separate	Receptacle, Male Blades - Module
SCHURTER Inc. KE16.5100.109	Voltage Selector	250 VAC	Panel Mount, Snap-In	10 A	UL94 V-0	CSA, ENEC, UL	IP40	Unfiltered - Commercial	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	27.5 mm	52.5 mm	Drawer Sold Separate	Receptacle, Male Blades - Module	2.5 mm	0.098 in
SCHURTER Inc. KE16.5100.105	Voltage Selector	250 VAC	Panel Mount, Snap-In	10 A	UL94 V-0	CSA, ENEC, UL	IP40	Unfiltered - Commercial	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	27.5 mm	52.5 mm	Drawer Sold Separate	Receptacle, Male Blades - Module			0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
