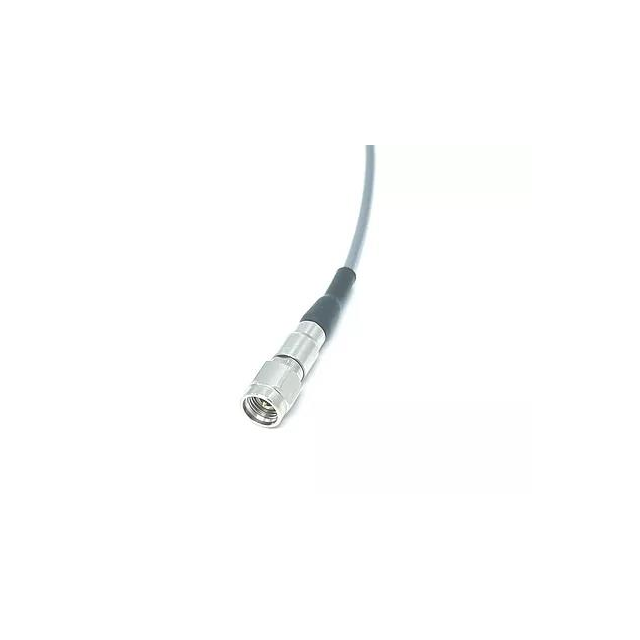

W103-KM1KM1-24INCH

Active

WITHWAVE CO LTD

COAX CBL 2.92MM TO 2.92MM 24"

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

COAX CBL 2.92MM TO 2.92MM 24"

Technical Specifications

Parameters and characteristics commom to parts in this series

COAX CBL 2.92MM TO 2.92MM 4'

Part	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	1st Connector	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	Color	Style [Min]	Style [Max]	2nd Contact Gender	Cable Type	Cable Type	2nd Connector	Length	Length	Length	1st Connector Mounting Type
WITHWAVE CO LTD W103-KM1KM1-48INCH	Male	40 GHz	50 Ohms	2.92mm Plug	165 °C	-55 °C	Free Hanging (In-Line)	Gray	2.92 mm	2.92 mm	Male	OD Coaxial Cable	2.48 mm	2.92 mm	1200 mm	4 ft	48 in	Free Hanging (In-Line)
WITHWAVE CO LTD W103-KM1KM1-24INCH	Male	40 GHz	50 Ohms	2.92mm Plug	165 °C	-55 °C	Free Hanging (In-Line)	Gray	2.92 mm	2.92 mm	Male	OD Coaxial Cable	2.48 mm	2.92 mm	609.6 mm		24 "	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm 2.48mm OD Coaxial Cable 24.00" (609.60mm)
