General part information

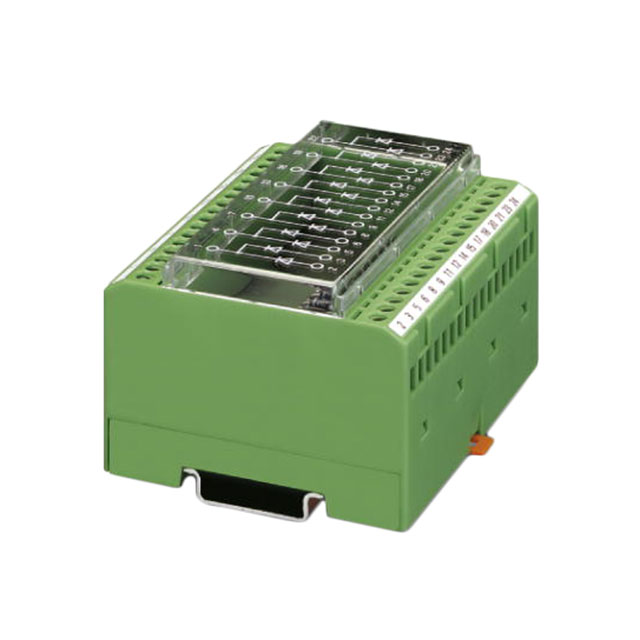

Diode Array 16 Pair Common Cathode 1300 V 200mA DIN Rail/Channel Module
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2954785 | 29547 Series |
|---|---|---|
| Current - Average Rectified (Io) (per Diode) | 200 mA | 200 - 400 mA |
| Diode Configuration | 16 Pair Common Cathode | 4 Pair Common Cathode, 16 Pair Common Cathode |
| Mounting Type | DIN Rail/Channel | DIN Rail/Channel |
| Operating Temperature - Junction [Max] | 50 °C | 50 °C |
| Operating Temperature - Junction [Min] | -20 °C | -20 °C |
| Package / Case | Module | Module |
| Speed | Any Speed | Standard Recovery >500ns, Any Speed |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | Module | Module |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1300 V | 1300 V |
DIODE MODULE GP 1300V 400MA
| Part | Mounting Type | Speed | Speed | Package / Case | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Diode Configuration | Supplier Device Package | Current - Average Rectified (Io) (per Diode) | Technology | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2954798 | DIN Rail/Channel | Standard Recovery >500ns | 200 mA | Module | 50 °C | -20 °C | 4 Pair Common Cathode | Module | 400 mA | Standard | 1300 V |
Phoenix Contact 2954785 | DIN Rail/Channel | Any Speed | 200 mA | Module | 50 °C | -20 °C | 16 Pair Common Cathode | Module | 200 mA | Standard | 1300 V |
