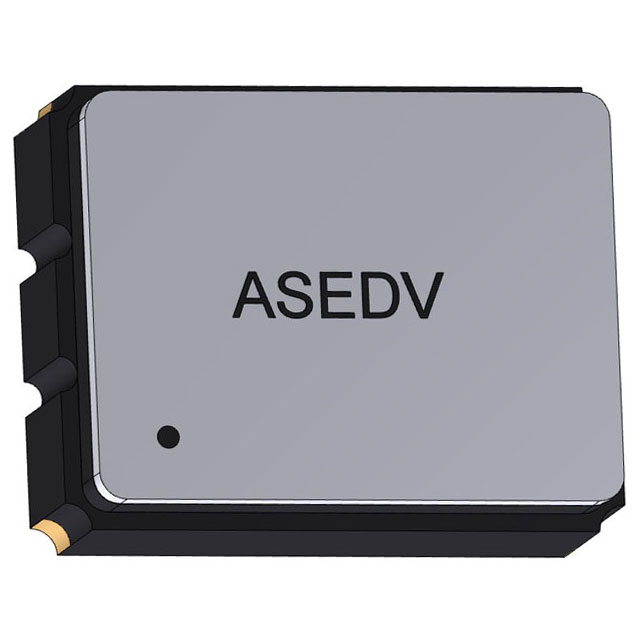

ASEDV-40.000MHZ-LR-T3
ActiveAbracon LLC
OSC XO 24.0000MHZ 1.6V-3.6V CMO
ASEDV-40.000MHZ-LR-T3
ActiveAbracon LLC
OSC XO 24.0000MHZ 1.6V-3.6V CMO
Description
General part information
ASEDV-40.000MHZ-LR-T3
40 MHz XO (Standard) HCMOS, LVCMOS Oscillator 1.8V, 2.5V, 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASEDV-40.000MHZ-LR-T3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 5 mA |
| Frequency | 40 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS, LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V, 1.8 V, 3.3 V |
| Voltage - Supply | 2.5V, 3.3V, 1.8V |
