25-E800-02
ActiveNTE Electronics, Inc
TERMINAL BLOCK EUROSTYLE
25-E800-02
ActiveNTE Electronics, Inc
TERMINAL BLOCK EUROSTYLE
Description
General part information
25-E800-02

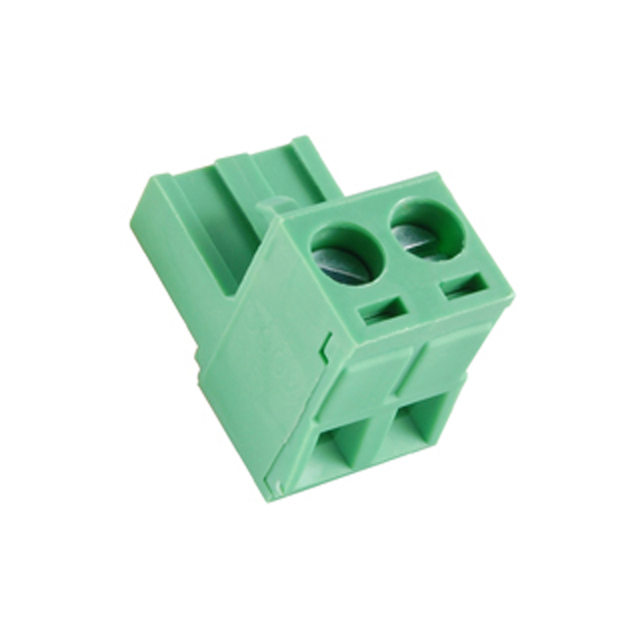

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 25-E800-02 |
|---|---|
| Color | Green |
| Current - UL | 15 A |
| Features | Retention Latches (Non-Wire Side) |
| Insulation Height | 0.591 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Pitch | 0.197 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 2 |
| Screw Size | M2.5 |
| Termination Style | Screw |
| Torque - Screw | 0.51 Nm |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Strip Length (Max) | 8 mm |
| Wire Strip Length (Min) | 7 mm |
