NRPN031PARN-RC

Active

Sullins Connector Solutions

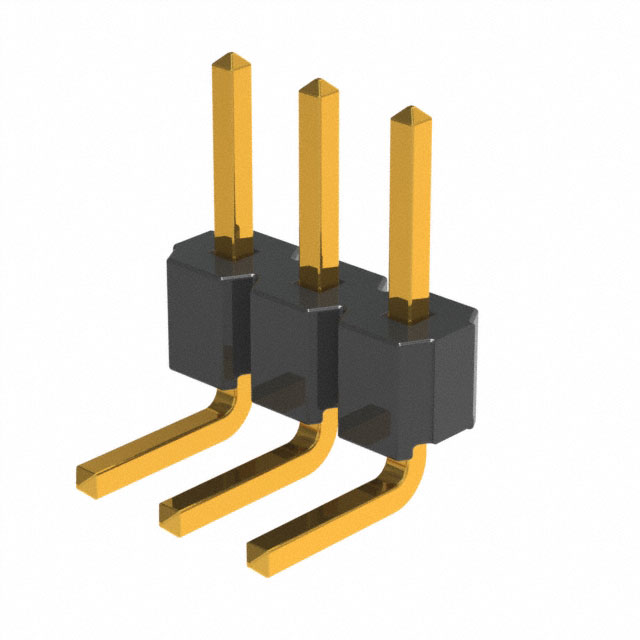

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN031PARN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

Part	Contact Finish Thickness - Post	Shrouding	Contact Shape	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post	Termination	Voltage Rating	Contact Finish - Mating	Style	Contact Type	Insulation Color	Contact Material	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Number of Rows	Insulation Material	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN031PARN-RC	Flash	Unshrouded	Square	Flash	0.11 in	2.79 mm	Solder	150 VDC	Gold	Board to Board Cable	Male Pin	Black	Brass	0.141 in	3.6 mm	0.079 in	2 mm	All	Push-Pull	UL94 V-0	1	Nylon 6T Polyamide (PA6T)	Header	Gold	0.079 in	2 mm	Through Hole Right Angle	-40 °C	105 ░C	2 A
Sullins Connector Solutions NRPN031PAEN-RC	Flash	Unshrouded	Square	Flash	0.11 in	2.79 mm	Solder	150 VDC	Gold	Board to Board Cable	Male Pin	Black	Brass	0.141 in	3.6 mm	0.079 in	2 mm	All	Push-Pull	UL94 V-0	1	Nylon 6T Polyamide (PA6T)	Header	Gold	0.079 in	2 mm	Through Hole	-40 °C	105 ░C	2 A	8.4 mm	0.331 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
