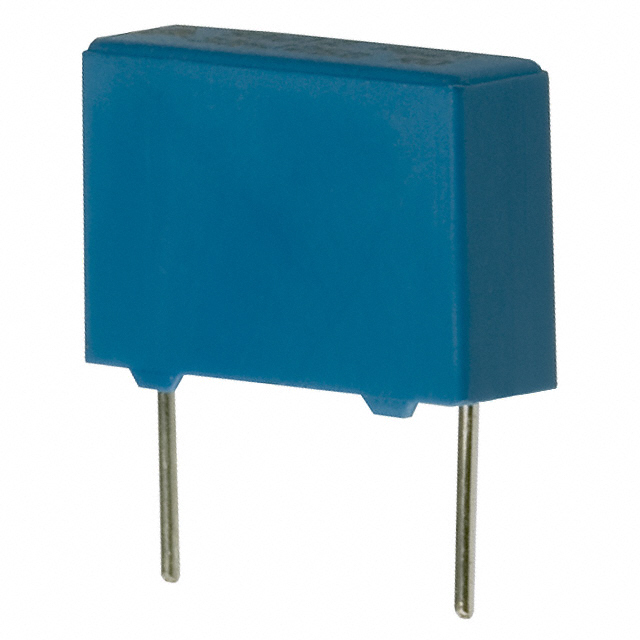

B32921C3333K289
ActiveEPCOS - TDK Electronics
CAP FILM 0.033UF 10% 630VDC RAD
B32921C3333K289
ActiveEPCOS - TDK Electronics
CAP FILM 0.033UF 10% 630VDC RAD
Description
General part information
B32921C3333K289
0.033 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32921C3333K289 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 0.033 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 0.354 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.157 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 630 V |
