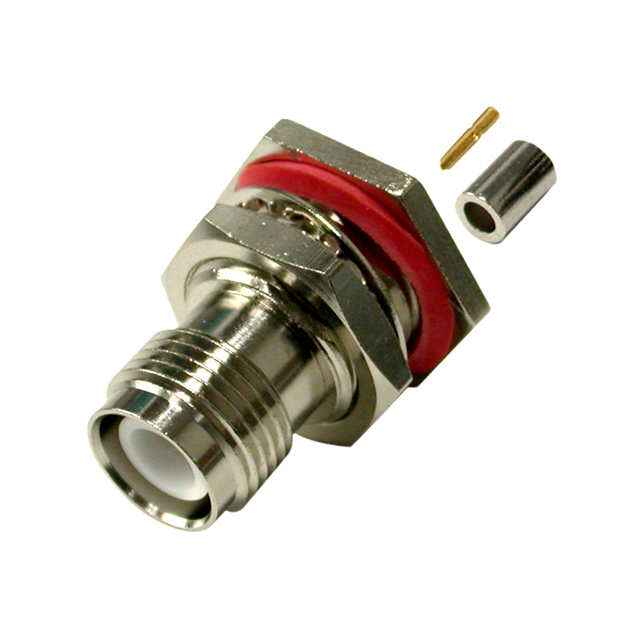

RP-1212-A

Active

RF Industries

RP TNC FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP TNC FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-1212-A

Body Finish	Nickel
Body Material	Brass
Cable Group	178B, RG-178, 178A, 196, 196A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Center Contact Plating	Frequency - Max [Max]	Mounting Feature	Impedance	Cable Group	Number of Ports	Center Contact Material	Connector Type	Dielectric Material	Body Material	Voltage Rating	Contact Termination	Connector Style	Body Finish	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
RF Industries RP-1212-A	Crimp	Gold	11 GHz	Bulkhead - Front Side Nut	50 Ohms	178A 178B 196 196A RG-178	1	Brass	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Brass	500 V	Crimp	RP-TNC	Nickel	Silver	-65 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
