XS4P12PA340
ActiveSCHNEIDER ELECTRIC

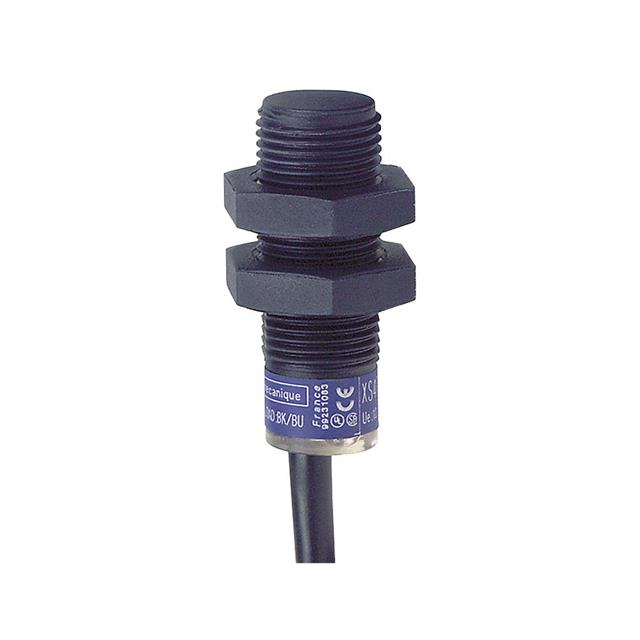

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 4MM, PNP, 12 TO 24V
XS4P12PA340
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 4MM, PNP, 12 TO 24V
Description
General part information
XS4P12PA340
Inductive Proximity Sensor 0.157" (4mm) IP68 Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS4P12PA340 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
