LPF04026000LTT
ObsoleteKYOCERA AVX
RF FILTER LOW PASS 4.242GHZ 0402
LPF04026000LTT
ObsoleteKYOCERA AVX
RF FILTER LOW PASS 4.242GHZ 0402
Description
General part information
LPF04026000LTT

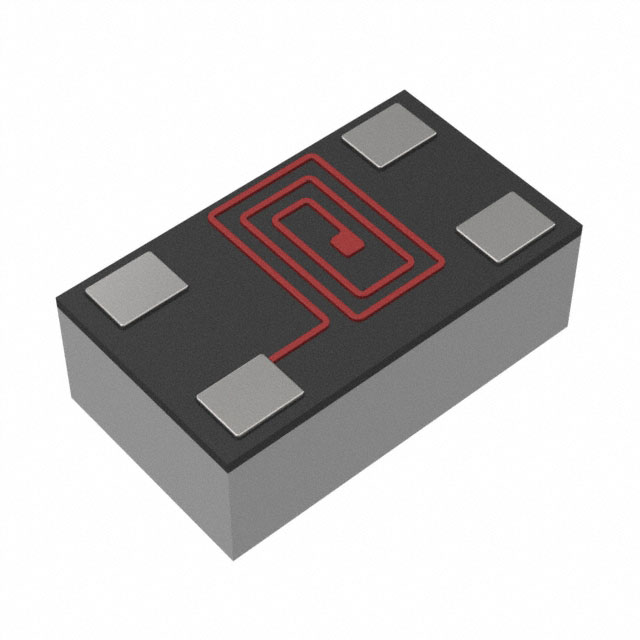

4.242GHz Center Frequency Low Pass RF Filter (Radio Frequency) 3.516GHz Bandwidth 0.35dB 0402 (1005 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LPF04026000LTT |
|---|---|
| Bandwidth | 3.516 GHz |
| Filter Type | Low Pass |
| Frequency (Center) | 4.242 GHz |
| Height (Max) | 0.016 in |
| Insertion Loss | 0.35 dB |
| Mounting Type | Surface Mount |
| Package Name | 0402 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.023 in |
