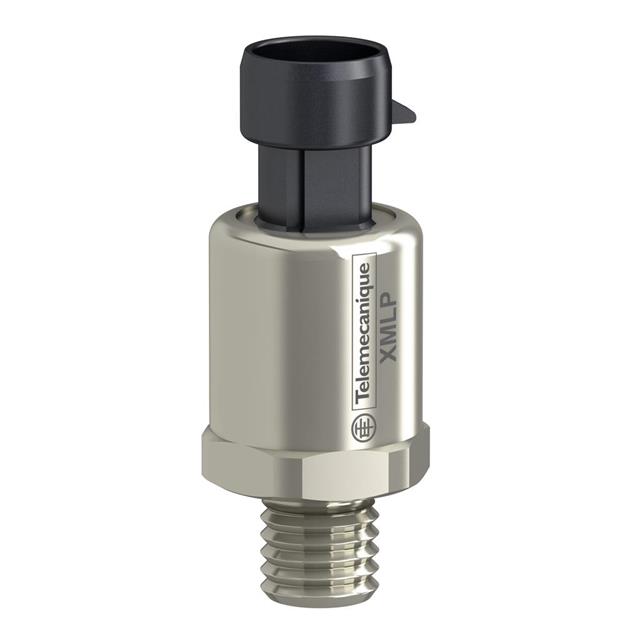

XMLP6K0PP130
ObsoleteSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
XMLP6K0PP130
ObsoleteSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
Description
General part information
XMLP6K0PP130
ELECTRONIC PRESSURE SENSORS, PRE
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLP6K0PP130 |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Maximum Pressure | 18000 PSI |
| Operating Pressure | 6000 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
