Description
General part information

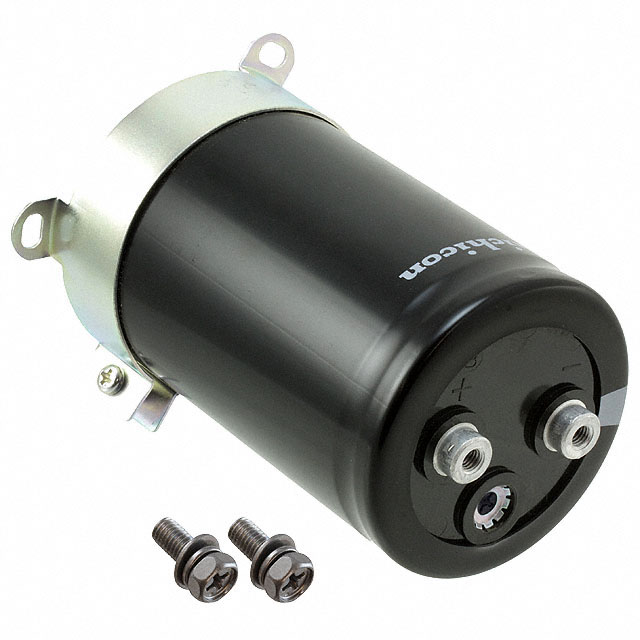

LNT2E222MSE
2200 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNT2E222MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 4.055 in |
| Lead Spacing | 0.866 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 3.84 A, 3.2 A |
| Size / Dimension Diameter | 2.008 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
