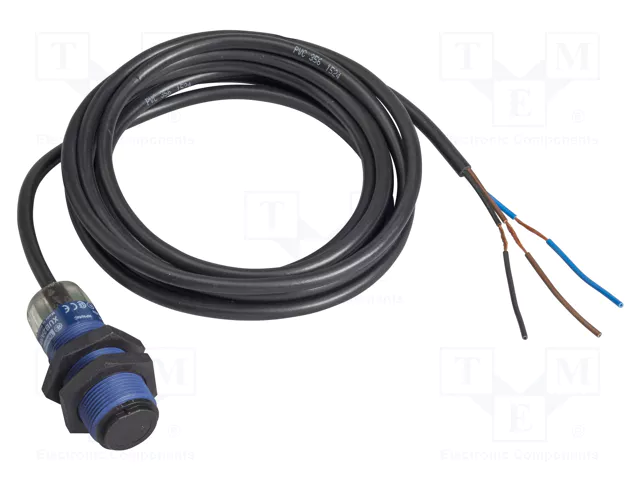

XUB4APANL5
ActiveSCHNEIDER ELECTRIC
SENSOR: PHOTOELECTRIC; RANGE: 0÷100MM; PNP; DARK-ON; USUP: 10÷36VDC
XUB4APANL5
ActiveSCHNEIDER ELECTRIC
SENSOR: PHOTOELECTRIC; RANGE: 0÷100MM; PNP; DARK-ON; USUP: 10÷36VDC
Description
General part information
XUB4APANL5
SENSOR: PHOTOELECTRIC; RANGE: 0÷100MM; PNP; DARK-ON; USUP: 10÷36VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | XUB4APANL5 |
|---|---|
| Cable Length | 196.85 in |
| Connection Method | Cable |
| Ingress Protection | IP65 |
| Light Source | Infrared |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, PNP-NC |
| Sensing Distance | 3.937 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
