CON292003-1-G
ActiveTE Connectivity AMP Connectors

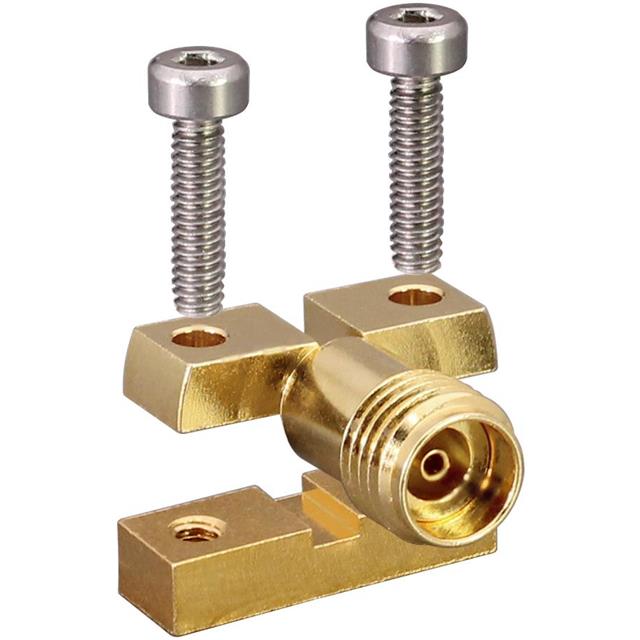

2.92 MM JACK 50 OHM PCB EDGE MOUNT
CON292003-1-G
ActiveTE Connectivity AMP Connectors
2.92 MM JACK 50 OHM PCB EDGE MOUNT
Description
General part information
CON292003-1-G
2.92mm Series Connector, Jack, 50 ohm, Threaded, 40 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount, Stainless Steel, Passivated
Technical Specifications
Parameters and characteristics for this part
| Specification | CON292003-1-G |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Jack, Female Socket |
| Contact Termination | Compression |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Screw |
