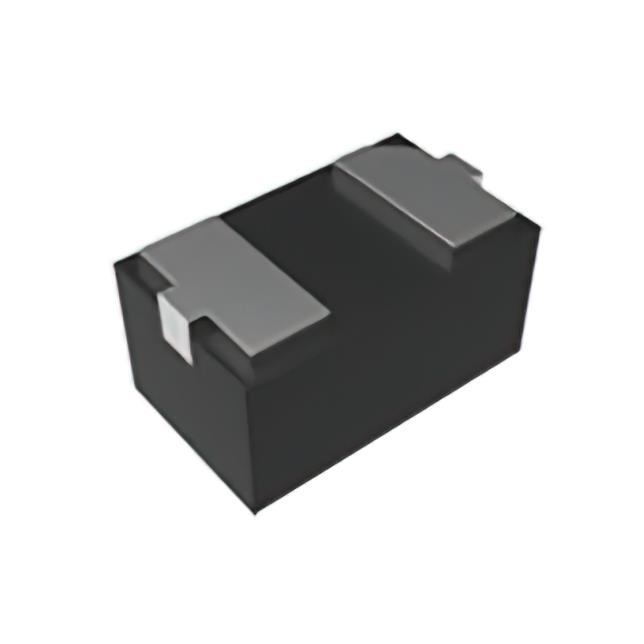

ESD36VLHE3-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 36VWM 80VC DFN1006-2L
ESD36VLHE3-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 36VWM 80VC DFN1006-2L
Description
General part information
ESD36VLHE3-TP
TVS DIODE 36VWM 80VC DFN1006-2L
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD36VLHE3-TP |
|---|---|
| Applications | General Purpose |
| Capacitance | 12 pF |
| Current - Peak Pulse | 2.5 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1006 Metric) |
| Package Name | DFN1006-2L |
| Power - Peak Pulse | 200 W |
| Power Line Protection | No |
| Qualification | AEC-Q101 |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 38 V |
| Voltage - Clamping (Max) | 80 V |
| Voltage - Reverse Standoff (Max) | 36 V |
