C31-8020m-9FT
ActiveCabling123
OM4 DUPLEX LC-LC FIBER CBL 9FT
C31-8020m-9FT
ActiveCabling123
OM4 DUPLEX LC-LC FIBER CBL 9FT
Description
General part information
C31-8020m-9FT

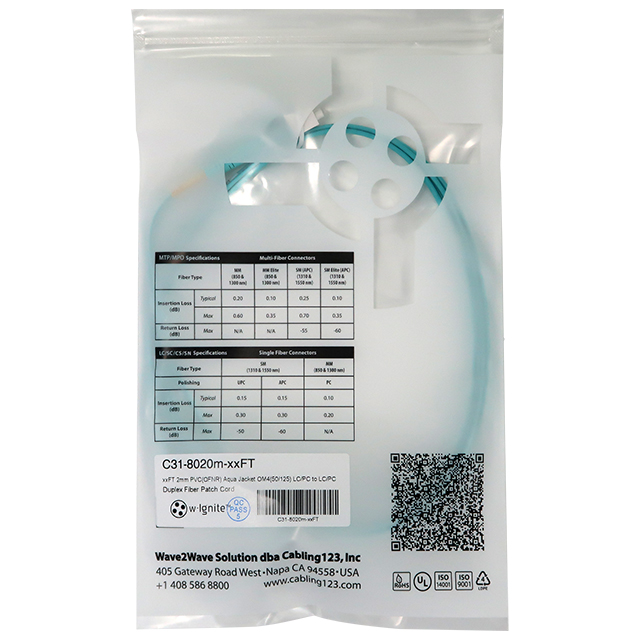

Cable Fiber Optic LC Duplex To LC Duplex OM4 9.0' (2.7m)
Technical Specifications
Parameters and characteristics for this part
| Specification | C31-8020m-9FT |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Cable Diameter | 0.08 " |
| Color - Cable | Aqua |
| Color - Connectors | Aqua |
| Fiber Type | OM4 |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 9 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNR |
| Type | Duplex, OM4, Multimode |
