150210-2020-RB

Active

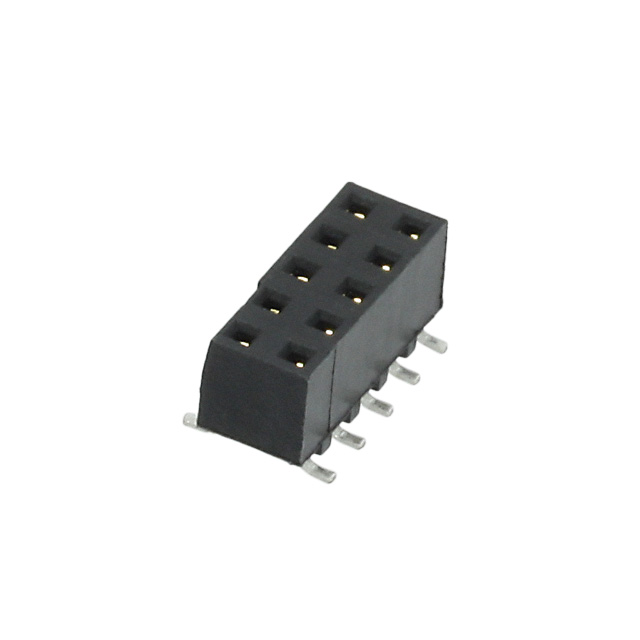

CONN RCPT 10POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150210-2020-RB

Active

CONN RCPT 10POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150210-2020-RB	150210 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150210 Series

CONN RCPT 10POS 0.079 GOLD SMD

Part	Insulation Material	Number of Rows	Mounting Type	Features	Connector Type	Number of Positions	Style	Voltage Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Contact Type	Fastening Type	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post
3M 150210-2020-RB	Thermoplastic	2	Surface Mount	Board Guide	Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.65 mm	0.183 in	UL94 V-0	Tin	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm
3M 150210-2020-RB-WB	Thermoplastic	2	Surface Mount	Board Guide, Pick and Place	Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.65 mm	0.183 in	UL94 V-0	Tin	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm
3M 150210-2000-RB	Thermoplastic	2	Surface Mount		Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.65 mm	0.183 in	UL94 V-0	Tin	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm
3M 150210-2000-RB-WB	Thermoplastic	2	Surface Mount	Pick and Place	Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.65 mm	0.183 in	UL94 V-0	Tin	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm
3M 150210-2000-TH	Thermoplastic	2	Surface Mount		Receptacle	10	Board to Board, Cable	500 V	All	15 µin	0.38 µm	Square	Black	Female Socket	Push-Pull	4.65 mm	0.183 in	UL94 V-0	Tin-Lead	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm
3M 150210-6002-TB	Thermoplastic	2	Through Hole		Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.5 mm	0.177 in	UL94 V-0	Tin-Lead	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm	2.54 mm	0.1 in
3M 150210-6002-RB	Thermoplastic	2	Through Hole		Receptacle	10	Board to Board, Cable	500 V	All	30 Áin	0.76 Ám	Square	Black	Female Socket	Push-Pull	4.5 mm	0.177 in	UL94 V-0	Tin	0.079 in	2 mm	Copper Alloy	Solder	105 ░C	-55 °C	Gold	200 µin	5.08 µm	0.079 in	2 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	378	$ 1.90

Description

General part information

150210 Series

10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources
