Specification	S29CD016J0MFAM013

Access Time	54 ns
Clock Frequency	56 MHz
Memory Depth	512 K
Memory Format	FLASH
Memory Interface (Type)	Parallel
Memory Size	16 Mb
Memory Type	Non-Volatile
Memory Width	32 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

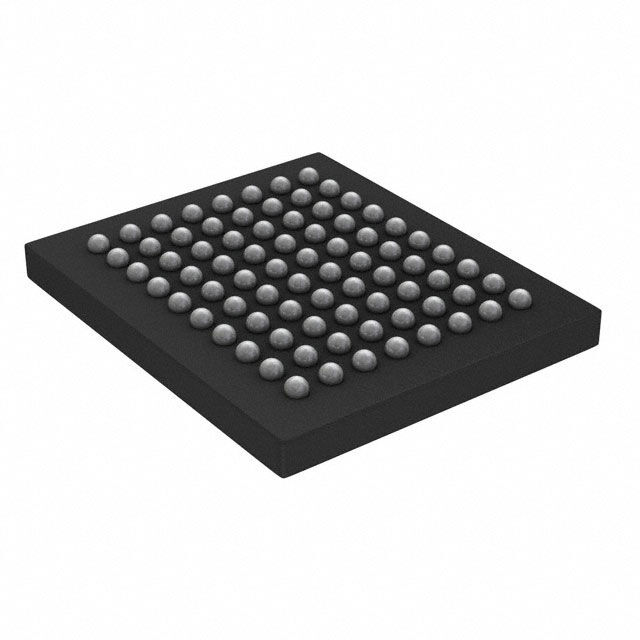

Package / Case	80-LBGA
Package Length	13 mm
Package Name	80-FBGA
Package Width	11 mm
Technology	FLASH - NOR
Voltage - Supply (Maximum)	2.75 V
Voltage - Supply (Minimum)	1.65 V
Write Cycle Time - Page	60 ns
Write Cycle Time - Word	60 ns

S29CD016 Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Memory Interface (Type)	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Mounting Type	Memory Format	Memory Size	Access Time	Clock Frequency	Memory Width	Memory Depth	Memory Type	Technology	Write Cycle Time - Word	Write Cycle Time - Page	Package Length	Package Width
INFINEON S29CD016J1JDGH014	1.65 V	2.75 V	Parallel	Die	-40 °C	145 °C	Die	Surface Mount	FLASH	16 Mb	54 ns	40 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0PQAM013	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	66 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0JQFM110	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	40 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0PQFM110	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	66 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0MQAM010	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	56 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0MDGH014	1.65 V	2.75 V	Parallel	Die	-40 °C	145 °C	Die	Surface Mount	FLASH	16 Mb	54 ns	56 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns
INFINEON S29CD016J0PQFM113	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	66 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0MQFM030	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	56 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
INFINEON S29CD016J0MFAM113	1.65 V	2.75 V	Parallel	80-FBGA	-40 °C	125 °C	80-LBGA	Surface Mount	FLASH	16 Mb	54 ns	56 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	13 mm	11 mm
INFINEON S29CD016J1JQFM010	1.65 V	2.75 V	Parallel	80-PQFP	-40 °C	125 °C	80-BQFP	Surface Mount	FLASH	16 Mb	54 ns	40 MHz	32 bit	512 K	Non-Volatile	FLASH - NOR	60 ns	60 ns	14 mm	20 mm
