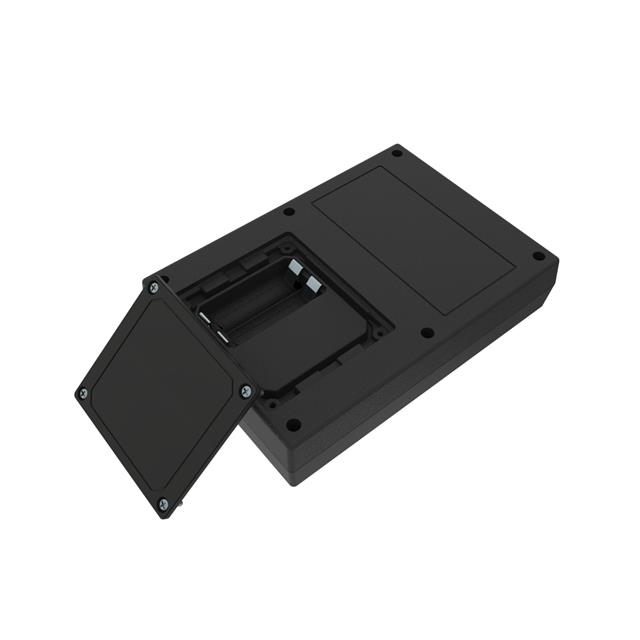

Specification	171i2AA,BK

Area (L x W)	33.6 in²
Color	Black
Container Type	Enclosure
Design	Cover Included, Hand Held
Height	1.5 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP67, 12, NEMA 4X, 13
Size / Dimension Length	6.88 in
Size / Dimension Width	4.88 in
Thickness	0.1 in

S Series

Part	Thickness	Color	Ratings	Size / Dimension Width	Size / Dimension Length	Area (L x W)	Container Type	Height	Design	Material	Material Flammability Rating
Serpac 153RAC,AL	0.1 in	Almond	IP40 NEMA 1	3.25 in	5.62 in	18.3 in²	Enclosure	63.5 mm	Cover Included
Serpac 172RI2AA,BK	0.1 in	Black	12 13 IP67 NEMA 4X	4.88 in	6.88 in	33.6 in²	Enclosure	2 in	Cover Included Hand Held	ABS Plastic	UL94 HB
Serpac 151IAC,BK	0.1 in	Black	IP40 NEMA 1	3.25 in	5.62 in	18.3 in²	Box	1.5 in	Hand Held Split Sides	ABS Plastic	UL94 HB
Serpac 1522AA,GY	0.1 in	Gray	IP40 NEMA 1	3.25 in	5.63 in	18.3 in²	Enclosure	2 in	Cover Included
Serpac 152C9V,BK	0.1 in	Black	IP40 NEMA 1	3.25 in	5.62 in	18.3 in²	Box	2 in	Hand Held Split Sides	ABS Plastic	UL94 HB
Serpac 152i2AA,AL	0.1 in	Almond	IP40 NEMA 1	3.25 in	5.62 in	18.3 in²	Enclosure	2 in	Cover Included
Serpac 172C2AA,AL		Almond	IP40 NEMA 1	4.88 in	6.88 in	33.6 in²	Enclosure	2 in	Cover Included	Plastic Polycarbonate (PC)
Serpac 173R2AA,GY	0.1 in	Gray	IP40 NEMA 1	4.88 in	6.88 in	33.6 in²	Enclosure	63.5 mm	Cover Included	ABS Plastic
Serpac 152i9V,AL	0.1 in	Almond	IP40 NEMA 1	3.25 in	5.63 in	18.3 in²	Enclosure	2 in	Cover Included
Serpac 1524AA,BK	0.1 in	Black	IP40 NEMA 1	3.25 in	5.62 in	18.3 in²	Box	2 in	Hand Held Split Sides	ABS Plastic	UL94 HB
