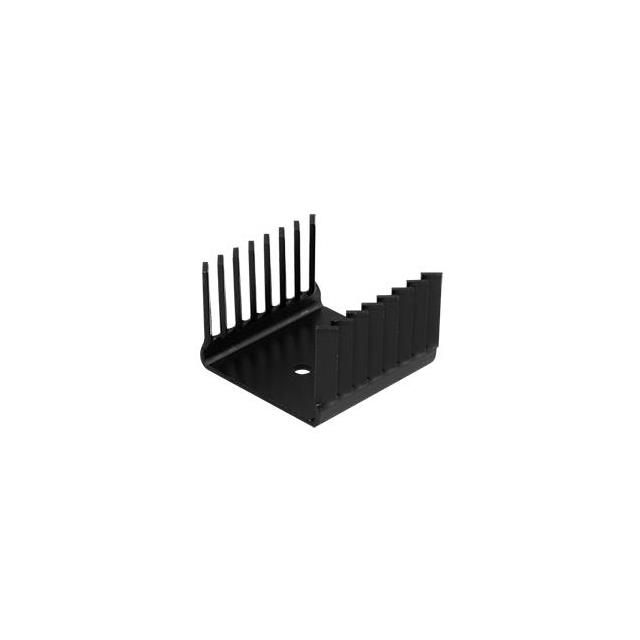

HSS24-B20-NP
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-218/TO-2
HSS24-B20-NP
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-218/TO-2
Description
General part information
HSS24-B20-NP
Heat Sink TO-218, TO-220 Aluminum Alloy 7.85W @ 75°C Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS24-B20-NP |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.984 in |
| Length | 1.654 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-218 |
| Power Dissipation | 7.85 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 9.56 °C/W, 4.3 °C/W |
| Type | Top Mount |
| Width | 1.496 in |
