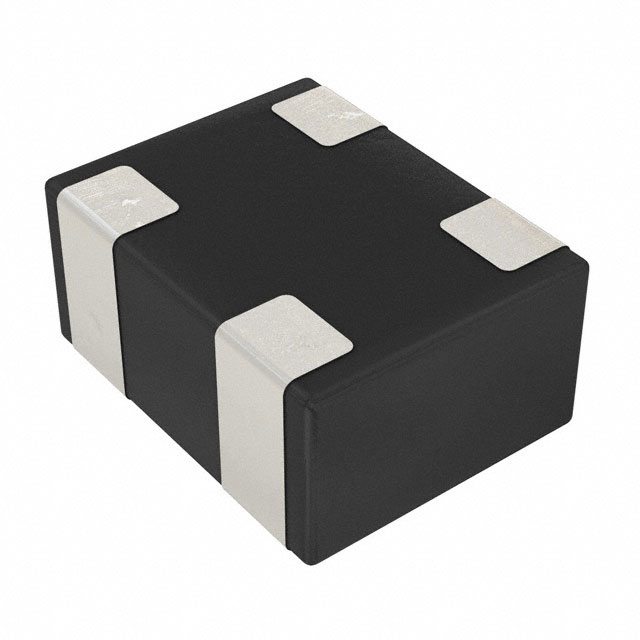

MCF08062G330-T
ObsoleteTaiyo Yuden
CMC 100MA 4LN 33 OHM SMD
MCF08062G330-T
ObsoleteTaiyo Yuden
CMC 100MA 4LN 33 OHM SMD
Description
General part information
MCF08062G330-T
4 Line Common Mode Choke Surface Mount 33 Ohms @ 100 MHz 100mA DCR 2.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | MCF08062G330-T |
|---|---|
| Current Rating (Max) | 100 mA |
| DC Resistance (DCR) (Max) | 2.5 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.018 in |
| Impedance | 33 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0302 (0806 Metric) |
| Size / Dimension Length | 0.033 in |
| Size / Dimension Width | 0.026 in |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
